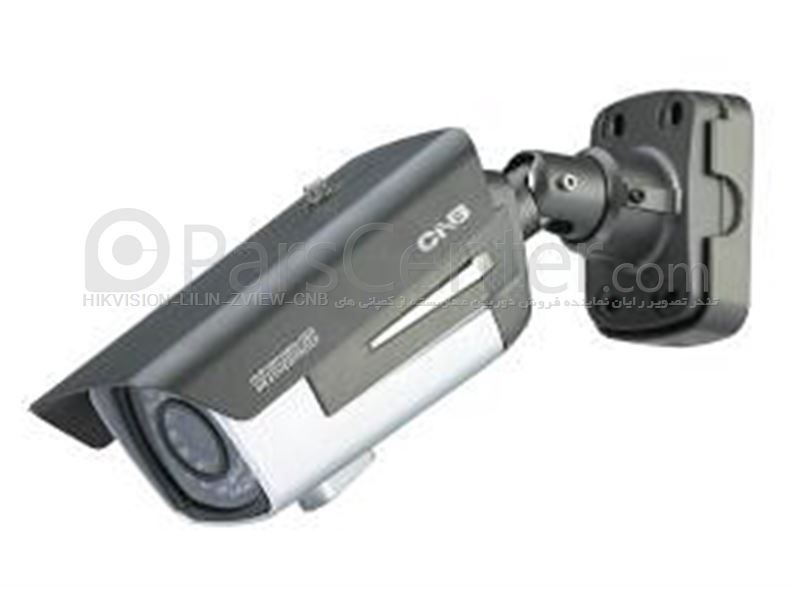

دوربین مداربسته دیواری با لنز متغیر2MP دید در شب تحت شبکه (IP ) مدلNXE-3055VR

دوربین مداربسته دیواری با لنز متغیر2MP دید در شب تحت شبکه (IP ) مدلNXE-3055VR -1/3Progressive CMOS Sensor -2.0Mega-Pixel Resolution- Onvif - Lens 3~10 mm - ICR - WDR

توضیحات محصول

Model	NXE3055VR
..[Camera]
Signal System	Progressive image processing
Scaning System	16:9 Progressive
Image Sensor	1/3" Progerssive CMOS Sensor
Sync. System	Internal
Effective Pixels Number	1920(H) x 1080(V) 2.0 Mega
Horizontal Resolution	1100 TV Lines
Video Output Level	Select NTSC/PAL 1.0Vp-p (BNC 75Ω, composite)
Lens	Built-in DC Iris Vari-focal Lens (f=3~10mm, F1.2)
Day & Night System	TDN(ICR)
IR LED	IR LED 36 EA (45˚/850nm)
Min. Illumination	0.01Lux(Color, DSS On), 0.001Lux(B/W, DSS On), 0.0Lux(IR LED On)
Back Light Compensation	On/Off
Flickerless	On/Off
White Balance	Auto/Manual/Push
Exposure	Auto/Manual
WDR	On/Off (21 Step)
3D-DNR / 2D-DNR	On/Off (20 Step)
Privacy Zone	Select 10 Zone – each area
Function	Color, B/W
Elec. Shutter Speed	NTSC : 1/30~1/30,000 (21 Step) \| PAL : 1/25~1/30,000 (21 Step)
..[Video / Audio]
Compression	H.264 / MJPEG
Frame Rate	Channel 1 Mode : H.246 * Support 1080P Mode Channel 2 Mode : H.264/MJPEG(30fps) * Support 720P Mode Channel 3 Mode : H.264/MJPEG(30fps) * Support D1 Mode
Resolution	Full HD(1920 x 1080), SXGA(1280 x 1024), 720P(1280x720), XGA(1024x768), D1(720 x 480 / 704 x 576), VGA(640x480), CIF(352 x 240 / 352 x 288)
Video Streaming	Channel 1 Mode : H.246(1080P) CBR/VBR Channel 2 Mode : H.264/MJPEG(720P) CBR/VBR Channel 3 Mode : H.264/MJPEG(D1) CBR/VBR
Max. Upload speed	Constant and variable bit rate in H.264 (up to 64kbps ~ 10Mbps by 10 user client) Controllable frame rate and bandwidth *Uplink bandwidth Max. 16Mbps
Audio	Two-way (full duplex / ADPCM G.711)
..[Network]
Protocol	IPv4, HTTP, TCP, RTSP, RTP, RTCP, UDP, SMTP, FTP, ICMP, DHCP, UPnP, Bonjour, ARP, DNS, DynDNS, NTP, Multhcast HTTPS, QoS, SNMP *) Onvif, IPv6
Supported DDNS	1.CNB DDNS 2.DynDNS.org 3.Reference code with SDK
LAN Interface	Ehternet 10/100 Base-T (RJ-45 Type)
Suppot PoE	Standard IEEE 802.3af supported, End-Span type
..[Security]
Access Level Setup	Multiple user access levels with password protection
Network Security	IP Filtering
..[Alarm and Event Managerment]
Image Detection	Motion detection (Select 3 Regions - each area)
Sensor Detection	Sensor In, Scheduling, Alarm out
Local Storage	SD/SDHC Card Memory : Max. 32GByte (Class 4 or Higher)
After Event Process	JPEG Image upload over FTP server / JPEG Image or Notification Message Upload over SMTP (E-mail server)
Pre/Post alarm	Detail time-set : Max. Pre alarm 5sec. / Post alarm 8sec., Storage (SD card : JPEG Image, H.264 Movie file)
..[Applications]
Browser	Internet Explorer 6.0 or higher
Support User Client	Concurrent users connections up to 10 Clients (by 64Kbps~1Mbps)
Monitoring Application	XNVR, CNB CMS and Utility (IP-Installer, etc)
..[Maintenance]
System Upgrade	Firmware upgrade over HTTP
..[Mechanical]
Operating Temperature	-20℃ ~ 40℃
Power	24VAC or 12VDC Dual Voltage / Max. 13W
Dimensions/Weight(Net)	109.4(W) x 122.4(H) x 343.5(D)mm
