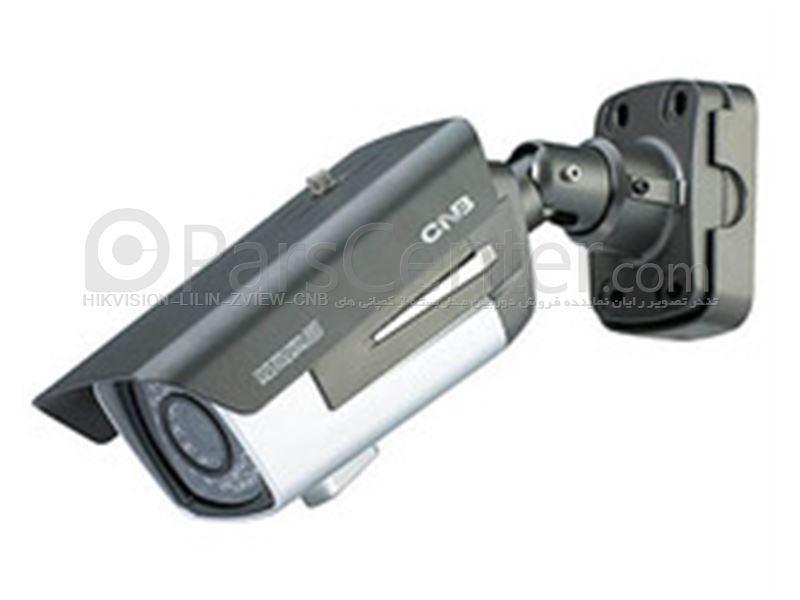

دوربین مداربسته دیواری با لنز متغیر1.3MP دید در شب تحت شبکه (IP ) مدلIXP-3035VR

دوربین مداربسته دیواری با لنز متغیر1.3MP دید در شب تحت شبکه (IP ) مدلIXP-3035VR -1.3Mega-Pixel Resolution - Onvif - Lens f = 3~10 mm - ICR –POE - Support SD/SDHC - 50 Meter IR

توضیحات محصول

Model	IDP5035VR
..[Camera]
Signal System	Progressive image processing
Scaning System	16:9 Progressive
Pixel Clock	80MHz
Image Sensor	1/3" Progerssive CMOS Sensor
Sync. System	Internal
Effective Pixels Number	1280(H) x 1024(V) 1.3 Mega
Horizontal Resolution	800 TV Lines
Video Output Level	Select NTSC/PAL 1.0Vp-p (BNC 75Ω, composite)
Lens	DC Iris Vari-focal Lens (f=3~10mm, F1.3)
IR LED & Sensor	IR LED 36EA (850nm/45˚), Sensor 1EA
IR LED Visible Range	Max. 15m
Day & Night System	ICR (CDS Type)
Min. Illumination	0.5Lux (Color), 0.05Lux (B/W, DSS On), 0Lux (IR LED On)
Back Light Compensation	On/Off
Flickerless	On/Off
White Balance	Auto/Manual
Exposure	Auto/Manual
Function	B/W
Elec. Shutter Speed	NTSC : 1/2~1/48,000 (21 Step) PAL : 1/2~1/50,000 (21 Step)
..[Video / Audio]
Compression	H.264 / MJPEG
Frame Rate	Dual Mode : H.264(30fps) / MJPEG(30fps) *Support 720P Mode
Resolution	SXGA(1280x1024), 720P(1280x720), D1(720x480/720x576), VGA(640x480), CIF(352x240/352x288)
Audio	Two-way (full duplex / ADPCM G.711)
..[Network]
Protocol	IPv4, HTTP, TCP, RTSP, RTP, RTCP, UDP, SMTP, FTP, ICMP, DHCP, UPnP, Bonjour, ARP, DNS, DynDNS, *IPv6, HTTPs, QoS, SNMP
Supported DDNS	1.CNB DDNS 2.DynDNS.org 3.Reference code with SDK
LAN Interface	Ehternet 10/100 Base-T (RJ-45 Type)
Suppot PoE	Standard IEEE 802.3af supported
..[Security]
Access Level Setup	Multiple user access levels with password protection
Network Security	IP Filtering
..[Alarm and Event Managerment]
Image Detection	Motion detection (Select 3 Regions - each area)
Sensor Detection	Sensor In, Scheduling, Alarm out
Local Storage	SD/SDHC card memory : Max.16G
After Event Process	JPEG Image upload over FTP server / SMTP (E-mail server)
..[Applications]
Browser	Internet Explorer 6.0 or higher
Monitoring Application	XNVR, CNB CMS and Utility (IP-Installer, etc)
..[Maintenance]
System Upgrade	Firmware upgrade over HTTP
..[Mechanical]
Operating Temperature	-20℃ ~ 50℃
Power	24VAC/12VDC Dual Voltage, Max.10W
Dimensions	109.4(W) x 122.4(H) x 343.5(D) mm
