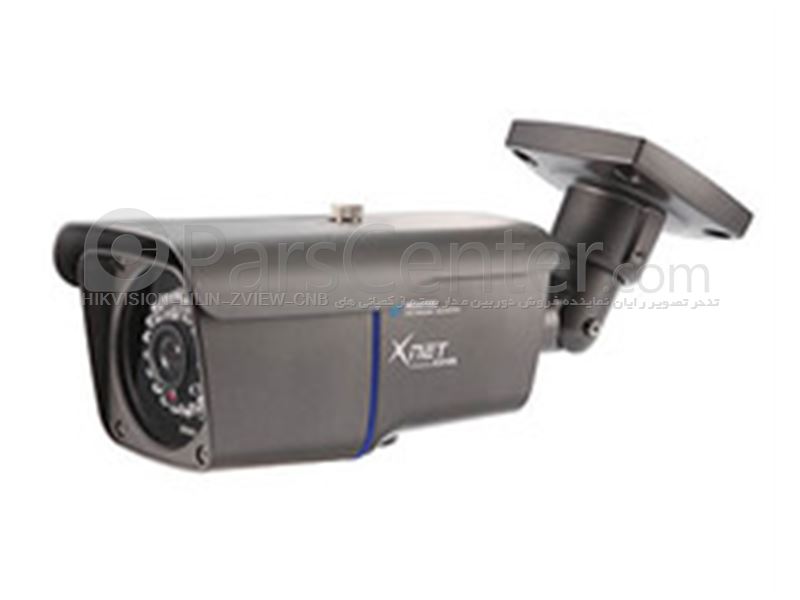

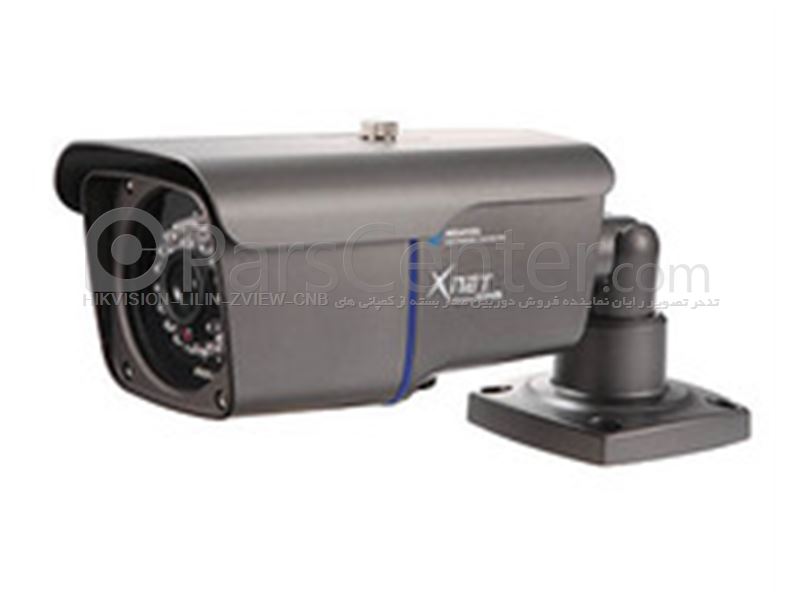

دوربین مدار بسته دیواری 2MP دید در شب تحت شبکه (IP ) مدل IXC-2050IR
دوربین مدار بسته دیواری 2MP دید در شب تحت شبکه (IP ) مدل IXC-2050IR -2.0Mega-Pixel Resolution- Onvif - Lens f=4.0 mm - ICR –IP 66 - POE - Ethernet 10/100 Base - 20 Meter IR
توضیحات محصول
دوربین مدار بسته دیواری 2MP دید در شب تحت شبکه (IP ) مدل IXC-2050IR
| Model | IXC2050IR |
| ..[Camera] | |
Signal System | Progressive image processing |
Scaning System | 16:9 Progressive |
Pixel Clock | 80MHz |
Image Sensor | 1/3" Progerssive CMOS Sensor |
Sync. System | Internal |
Effective Pixels Number | 1920 (H) x 1080 (V) 2.0 Mega |
Horizontal Resolution | 1100 TV Lines |
Video Output Level | Select NTSC/PAL 1.0Vp-p (BNC 75Ω, composite) |
Lens | Built-in Fixed Mega Pixel Lens (f=4.0mm, F1.8) |
Day & Night System | ICR (CDS Type) |
IR LED & Sensor | IR LED 30EA (850nm/45˚), Sensor 1EA |
IR LED Visible Range | Max. 15m |
Min. Illumination | 1Lux (Color, DSS On), 0Lux (IR LED On) |
Back Light Compensation | On/Off |
Flickerless | On/Off |
White Balance | Auto/Manual |
Exposure | Auto/Manual |
Function | B/W |
Elec. Shutter Speed | NTSC : 1/7.5~1/8,000 (21 Step) PAL : 1/7.5~1/8,000 (21 Step) |
| ..[Video] | |
Compression | H.264 / MJPEG |
Frame Rate | Dual Mode : H.264(30fps) / MJPEG(30fps) *Support 720P Mode |
Resolution | Full HD(1920 x 1080), SXGA(1280 x 1024), 720P(1280x720), D1(720x480/720x576), VGA(640x480), CIF(352x240/352x288) |
| ..[Network] | |
Protocol | IPv4, HTTP, TCP, RTSP, RTP, RTCP, UDP, SMTP, FTP, ICMP, DHCP, UPnP, Bonjour, ARP, DNS, DynDNS, *IPv6, HTTPs, QoS, SNMP |
Supported DDNS | 1.CNB DDNS 2.DynDNS.org 3.Reference code with SDK |
LAN Interface | Ehternet 10/100 Base-T (RJ-45 Type) |
Suppot PoE | Standard IEEE 802.3af supported |
| ..[Security] | |
Access Level Setup | Multiple user access levels with password protection |
Network Security | IP Filtering |
| ..[Alarm and Event Managerment] | |
Image Detection | Motion detection (Select 3 Regions - each area) |
Sensor Detection | Sensor In, Scheduling, Alarm out |
Local Storage | SD/SDHC card memory : Max.16G |
After Event Process | JPEG Image upload over FTP server / SMTP (E-mail server) |
| ..[Applications] | |
Browser | Internet Explorer 6.0 or higher |
Monitoring Application | XNVR, CNB CMS and Utility (IP-Installer, etc) |
| ..[Maintenance] | |
System Upgrade | Firmware upgrade over HTTP |
| ..[Mechanical] | |
Operating Temperature | -20℃ ~ 50℃ |
Power | 12VDC, Max.7.2W |
Dimensions | 91.6(W) x 99.8(H) x 284.8(D) mm |
