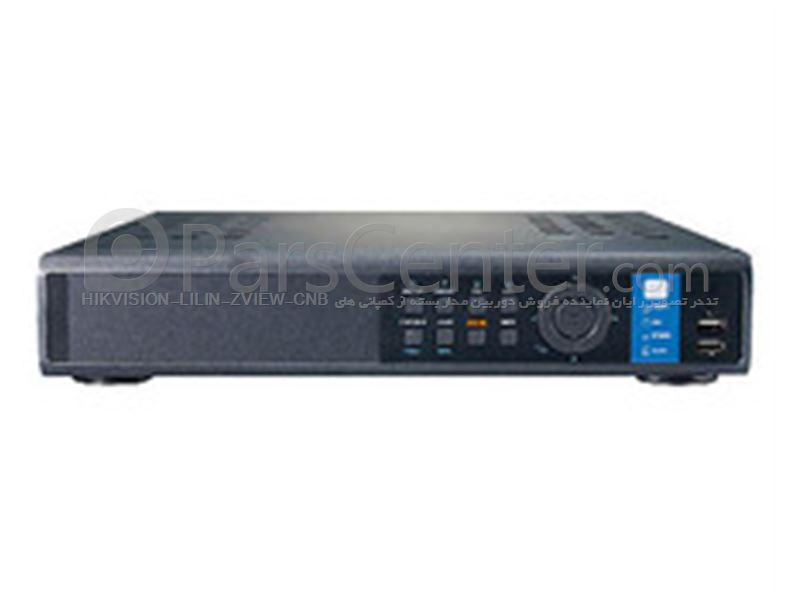

دستگاه دی وی آر DVR شانزده (16) کانال هشت صدا CIF مدل HDS-4848E
دستگاه دی وی آر DVR شانزده (16) کانال هشت صدا CIF مدل HDS-4848E - Built in 2 SATA interface -Support DDNS and Web server -Support i-phone & Android viewer
توضیحات محصول
دستگاه دی وی آر DVR شانزده (16) کانال هشت صدا CIF مدل
| Model | HDS4848E | |
| ..[Video] | ||
Input | Composite | 16CH, 1.0Vp-p, 75Ω |
| Signal Format | NTSC/PAL and RGB(VGA) | |
Output | Main Monitor | Composite 1CH BNC, 1CH VGA(Dual Display), Loop-out Optional |
| Output Level | Composite, 1.0Vp-p, 75Ω | |
| ..[Audio] | ||
Input & Output | 8 CH RCA type Line input(with Optional Connector) / 1CH RCA type Line output | |
Audio Codec | ADPCM | |
| ..[Recording] | ||
Compression Format | H.264 Baseline Profile | |
Compression Rate | 4 Step Selectable | |
Frame Rate | D1 : 720x480 / 720x576 MAX.120 / 100fps Half D1 : 720x240 / 720x288 MAX.240 / 200fps CIF : 360x240 / 360x288 MAX.480 / 400fps | |
Recording Mode | Time Continuous / Schedule / Event / Emergency REC | |
Motion Detection | Each Channel Area Selectable | |
| ..[Display] | ||
Display Rate | Real time Display per Camera | |
Multiscreen Display | 1 / 4 / 8 / 16 / PIP / Digital Zoom | |
| ..[Playback] | ||
Display Mode | 1 / 4 / 8 / 16 / Digital Zoom | |
Playback Mode | Normal Playback, Various playback speed (Forward and Backward) | |
Search Mode | Archived data Search, Date/Time, Calendar, Event | |
| ..[Event] | ||
Sensor Input | 4 TTL (Terminal Block NO/NC Programmable) | |
Alarm Output | 2 TTL (terminal block NO/NC Programmable) | |
Pre-alarm Recording | Max. 30 sec. | |
Post-alarm Recording | Max. 30 Minutes. | |
| ..[Language] | ||
Multi-Language | English, Korean, Spanish, German, Netherlandish, Japan, French, Italian, Turkish, Greek, Russian, Czech, Slovak, Polish, Portuguese, Traditional Chinese, Simplified Chinese | |
| ..[Storage] | ||
Internal HDD | Interface Type | 2 SATA Type HDD |
| Max. HDD Capacity | Support 2TB | |
| ..[Backup] | ||
Data Exporting | USB | USB Memory & External USB HDD, Own Media Play, Own DB file |
| ..[Serial Port] | ||
PTZ Camera Control | 1 RS-485, 1 RS-232 | |
| ..[Operation] | ||
Control Applications | Via Front Consol Control, USB Mouse, Remote Controller, TCP/IP (Network) | |
| ..[Network] | ||
Remote Access Interface | Support Same Local Control interface | |
Remote Access Tool | ActiveX Base Web Live & Search / HDx Viewer and CNB CMS Access (Live, Setting, Search, Recoding, ETC.) / Event Alarm Callback, Remote Site System Check with HDx Viewer and CNB CMS | |
DDNS Service | Support by CNB DDNS Server (Free) | |
Network Interface | 10/100 base-T Ethernet (RJ-45) | |
System Time Sync | Support Network Time Protocol | |
| ..[Other] | ||
Operating Temperature | 5℃~40℃ (41℉~104℉) | |
Operating Humidity | 0%~80% / Non-condensing | |
Power | DC 12V, 3.33A, 40W | |
Dimensions (WxHxD)mm | 340 x 67 x 267 (mm) | |
Weight | Approx. 2kg (Without HDD) |
HDS-4848E
