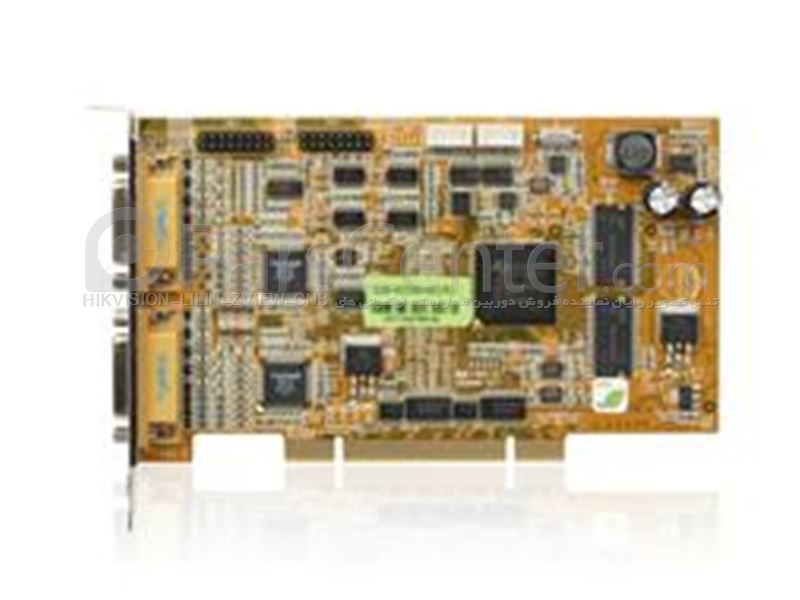

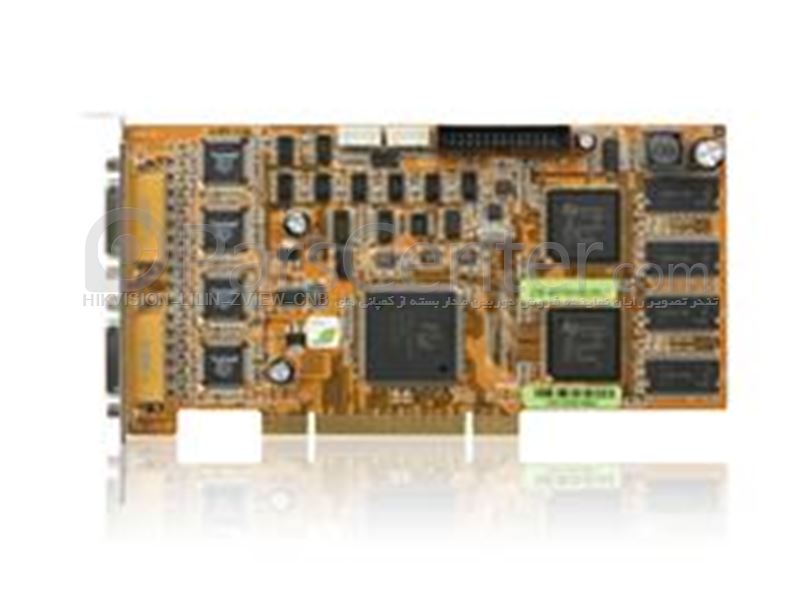

COMPRESSION BOARD کارت فشرده سازی DVR HIKVISION , شانزده 16 کانال مدل DS-4016HSI

COMPRESSION BOARD کارت فشرده سازی DVR HIKVISION , شانزده 16 کانال مدل DS-4016HSI -H.264 – 16 CH CIF Real Time -PCI 2.2 Standard -Windows 2000/XP/2003/7/Vista

توضیحات محصول

COMPRESSION BOARD کارت فشرده سازی DVR HIKVISION , شانزده 16 کانال مدل DS-4016HSI

Video & Audio Input

Video Compression:	H.264
Video Input:	8-ch
Video Input Interface:	BNC (1.0Vp-p, 75 Ohm)
Audio Compression:	OggVorbis, 16Kbps
Audio Input:	8-ch
Audio Input Interface:	BNC(2.0Vp-p, 1K Ohm)

Video & Audio Output

Live View Resolution:	4CIF Real Time
Compression Resolution:	4CIF/DCIF/2CIF/CIF
Recording Frame Rate:	4CIF: 3-5fps DCIF: 6-7fps 2CIF: 8-9fps CIF: 25(P)/30(N)fps
Video Bit Rate:	32Kbps~2Mbps adjustable
Stream Type:	Video, Video & Audio

General

Power Consumption:	<4.5W
Working Humidity:	10%~90%
Working Temperature:	-10°C~+50°C(14°F~122°F)
Dimensions:	178mm×99mm(7.01"×3.90")

System Requirements

OS:	Windows2000Pro + SP4; WindowsXP + SP2; Windows 2003(Please enable DirectDraw and Direct 3D acceleration); Windows Vista; (All 32bit OS, with DirectX version higher than 8.1); 32 bit Fedora 8;
CPU:	Intel series
Motherboard:	Gamen motherboard with Intel 915 chipsets; Microstar, Gigabyte motherboard with Intel 945 chipsets; Asus, Microstar, Gigabyte, Intel, ECS motherboard with Intel 965 chipsets; ECS, Intel, Gigabyte motherboard with Intel G31/G33 chipsets; Asus motherboard with Intel P31 chipsets; Asus, Microstar, Gigabyte, Intel, ECS motherboard with Intel P35 chipsets; Microstar, Gigabyte motherboard with Intel P43 chipsets; Microstar, ECS motherboard with Intel P45 chipsets;
Memory:	256M or above
