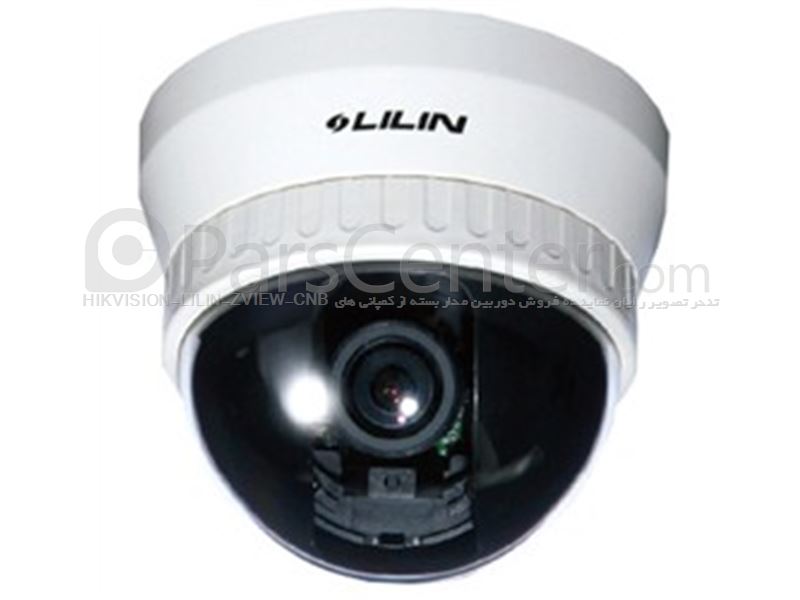

دوربین مدار بسته آنالوگ 380TVL صنعتی LILIN Dome camera مدل PIH-2126 xp
دوربین مدار بسته آنالوگ 380TVL صنعتی LILIN Dome camera مدل PIH-2126 xp -1/3" Sony Super HAD -380TVL -Lux 0.03 - Lens (2.8-12)mm
توضیحات محصول
دوربین مدار بسته آنالوگ 380TVL صنعتی LILIN Dome camera مدل PIH-2126 xp
-1/3" Sony Super HAD
-380TVL
-Lux 0.03
- Lens (2.8-12)mm
| Brand | LILIN |
|---|---|
| Model Code | IPD552EX |
| Chip Inch Size | 1/3 |
| Colour Type | Colour |
| Resolution TVL | 540 |
| Dome Type | Variable Focus |
| Sensitivity lux | 0.05 |
| Electrical Specifications | Voltage: 12 V DC |
| Focal length | 2.8 ~ 12 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| S/ N (Signal/ Noise) Ratio dB | >50 dB |
| Synchronisation | Internal |
| Video Output | CVBS 1.0Vp-p, 75 ohm |
| Network Properties | Network Protocols: IP, TCP, UDP, HTTP, SMTP, ESMTP, NTP, DDNS, FTP, * Image Frame Rate: H.264: up to 30/25 fps at full D1 resolution;** |
| Electrical Specifications | Power Consumption: 4.8W / POE, 6W |
| Physical Specifications | Dimensions mm: 144 x 113 Weight g: 520 |
| Environmental Specifications | Operating Temp oC: -10 ~ +50 |
| System Requirments | Operating System: Windows 2000, Windows XP, Windows Vista |
| Model Info | * ARP, DHCP, PPPoE, ENS, Telnet, RTP, RTSP, RTCP ** JPEG: 1fps at CIF |
