Communication for SIMATIC S7-300 PART1

Part no

TYPE

Specification

6GK7 342-2AH00-0XA0

CP 342-2 AS-i

Basic module for actuator-sensor interface link

6GK7 342-2AH01-0XA0

CP 342-2 AS-i

Basic module for AS-i attachment

6GK7 343-2AH00-0XA0

CP 343-2 AS-i

Basic module for AS-i attachment. Support of AS-i-A/B slaves and AS-i-7.3/7.4 analog slaves.

6GK7 343-2AH01-0XA0

CP 343-2 AS-i

Basic module for AS-i attachment. Support of AS-i A/B slaves and AS-i 7.3/7.4 analog slaves and slaves complying with the ASi Specification V3.0.

6GK7 343-2AH10-0XA0

CP 343-2 P AS-i

Basic module for AS-i attachment. Support of AS-i-A/B slaves and AS-i-7.3/7.4 analog slaves. Upload an AS-i configuration to the PG.

6GK7 343-2AH11-0XA0

CP 343-2 P AS-i

Basic module for AS-i attachment. Support of AS-i A/B slaves and AS-i 7.3/7.4 analog slaves and slaves complying with the ASi Specification V3.0. Upload an AS-i configuration to the PG.

6GK7 343-1EX00-0XE0

CP 343-1

S7 CP for Industrial Ethernet TCP/IP with SEND/RECEIVE and FETCH/WRITE interface, long data, UDP, TCP, S7 communication (server), routing, module replacement without PG, firmware V5.0

6GK7 343-1EX10-0XE0

CP 343-1

S7 CP for Industrial Ethernet ISO and TCP/IP with SEND/RECEIVE and FETCH/WRITE interface, long data, UDP, TCP, ISO, S7 communication (server), routing, module replacement without PG, 10/100 Mbps, IP multicast, firmware V2.0

6GK7 343-1EX11-0XE0

CP 343-1

S7 CP for Industrial Ethernet ISO and TCP/IP with SEND/RECEIVE and FETCH/WRITE interface, long data, UDP, TCP, ISO, S7 communication, routing, module replacement without PG, 10/100 Mbps, initialization over LAN, IP multicast, firmware V2.0

6GK7 343-1EX20-0XE0

CP 343-1

S7 CP for Industrial Ethernet TCP/IP with SEND/RECEIVE and FETCH/WRITE interface, long data, UDP, TCP, S7 communication, routing, module replacement without PG, 10/100 Mbps, initialization over LAN, IP multicast, NTP, firmware V1.1

6GK7 343-1EX21-0XE0

CP 343-1

S7 CP for Industrial Ethernet TCP/IP with SEND-RECEIVE and FETCH-WRITE interface, PROFINET IO Controller, PROFINET CBA, long data, UDP, TCP, ISO, S7 communication, routing, module replacement without PG, 10/100 Mbps, initialization over LAN, IP multicast, NTP, DHCP, IP configuration using DHCP/ FB, firmware V1.2

6GK7 343-1EX30-0XE0

CP 343-1

S7 CP for Industrial Ethernet, ISO and TCP/IP with SEND-RECEIVE and FETCH-WRITE interface, PROFINET IO controller or PROFINET IO device, UDP, TCP with/without RFC 1006, IP multicast, ISO, S7 communication, S7 routing, IP access control list, SNMP, Web diagnostics, initialization via LAN, time-of-day sync. with SIMATIC mode or NTP, module replacement without PG, 2-port switch, 10/100 Mbps, IP configuration via DHCP/FB, MRP, support of PROFINET blocks V3.0, firmware V2.4

6GK7 343-1BA00-0XE0

CP 343-1

S7 CP for Industrial Ethernet with SEND/RECEIVE and FETCH/WRITE interface, long data, S7 communication (server), routing, module replacement without PG, firmware V5.0

6GK7 343-1HX00-0XE0

CP 343-1

S7 CP for Industrial Ethernet TCP/IP with SEND/RECEIVE and FETCH/WRITE interface, long data, UDP, TCP, S7 communication (server), routing and module replacement without PG, 10/100 Mbps, initialization over LAN, IP multicast, PROFINET CBA

6GK7 343-1GX00-0XE0

CP 343-1 ADVANCED-IT

S7 CP for Industrial Ethernet ISO and TCP/IP with SEND/RECEIVE and FETCH/WRITE interface, long data, UDP, TCP, ISO, S7 communication (server), routing, module replacement without PG, with web server and E-mail, 10/100 Mbps

6GK7 343-1GX11-0XE0

CP 343-1 ADVANCED-IT

S7 CP for Industrial Ethernet ISO and TCP/IP with SEND/RECEIVE and FETCH/WRITE interface, long data, UDP, TCP, ISO, S7 communication, routing, module replacement without PG, with web server and E-mail, 10/100 Mbps, initialization over LAN, IP multicast, NTP, FTP, firmware V2.0

6GK7 343-1GX20-0XE0

CP 343-1 ADVANCED-IT

S7 CP for Industrial Ethernet TCP/IP with SEND/RECEIVE and FETCH/WRITE interface, long data, UDP, TCP, S7 communication, routing, module replacement without PG, with web server and E-mail, 10/100 Mbps, initialization over LAN, IP multicast, NTP, FTP, Access protection with IP-ACL, IP configuration using DHCP/ FB, firmware V1.0

6GK7 343-1GX21-0XE0

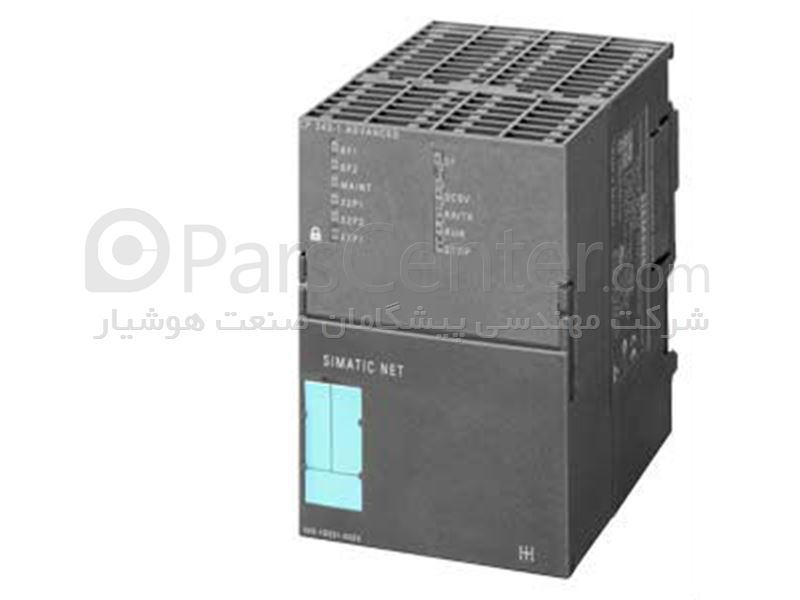

CP 343-1 ADVANCED-IT

S7 CP for Industrial Ethernet, PROFINET IO Controller, ISO and TCP/IP with SEND-RECEIVE and FETCH-WRITE interface, long data, UDP, TCP, ISO, S7 communication, routing, module replacement without PG, with Web server and E-mail, 10/100 Mbps, initialization over LAN, IP multicast, time-of-day sync. using SIMATIC mode or NTP, protection using IP access list, FTP, SNMP, DHCP, HTML diagnostics, data storage on C-PLUG, PROFINET CBA, firmware V1.1
