فلو ترانسمیتر یوکاگاوا مدل EJX115A و Yokogawa Low Flow Transmitter EJX115A
شرکت سازه کار آفرینان وارد کننده فلو ترانسمیتر یوکاگاوا مدل EJX115A دارای خدمات پس از فوش و دارای قیمت مناسب تر از همه جا
مشخصات
- شرکت سازنده :
- Yokogawa
- مدل :
- EJX115A
- کشور سازنده :
- ژاپن
- ساخت کشور :
- ژاپن
توضیحات محصول

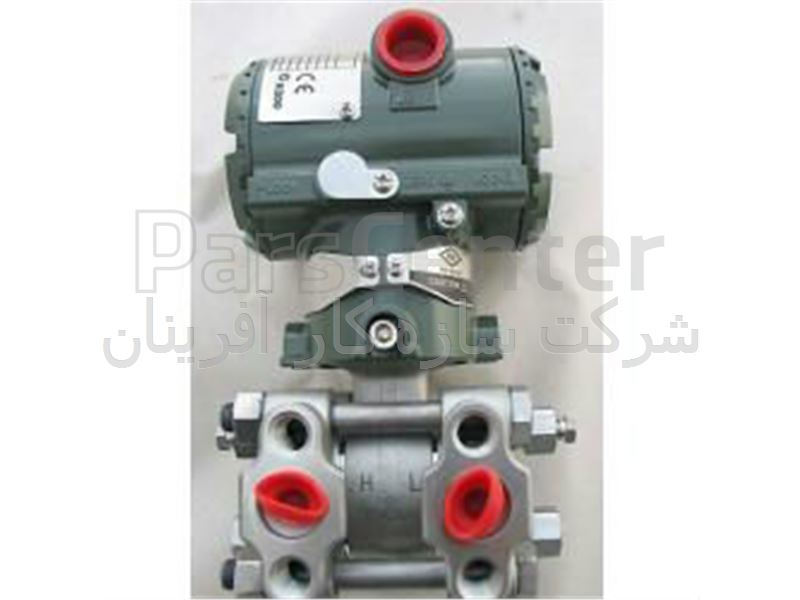

YOKOGAWA Low Flow Transmitter EJX115A
Overview
Yokogawa Low Flow Transmitter EJX115A is a differential pressure transmitter assembled with an integral orifice and excellent forvery low flow measurement. Yokogawa Low Flow Transmitter EJX115A outputs a 4 to 20 mA DC signal corresponding to themeasured flow. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integralindicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up usingcommunications, diagnostics and optional status output for pressure high/low alarm. The multi-sensing technology provides the advanced diagnosticfunction to detect such abnormalities as an impulse line blockage or heat trace breakage. FOUNDATION Fieldbus and PROFIBUS PA protocol types arealso available. All EJX series models in their standard configuration, with the exception of the Fieldbus and PROFIBUS types, are certified by TÜV ascomplying with SIL 2 for safety requirement.
STANDARD SPECIFICATIONS
Yokogawa Low Flow Transmitter EJX115A
Refer to GS 01C25T02-01EN for Fieldbus communication type and GS 01C25T04-01EN for PROFIBUS PA communication type for the items marked with “◊.”
SPAN AND RANGE LIMITS
PERFORMANCE SPECIFICATIONS [Integral Orifice] Accuracy±5% of span Refer to TI 01C20K00-01E for conditions. [Differential Pressure Transmitter] Zero-based calibrated span, linear output, wetted parts material code S and silicone oil, unless otherwise mentioned. For Fieldbus and PROFIBUS PA communication types, use calibrated range instead of span in the following specifications. Specification Conformance EJX series ensures specification conformance to at least ±3σ. MODEL AND SUFFIX CODES Yokogawa Low Flow Transmitter EJX115A |
