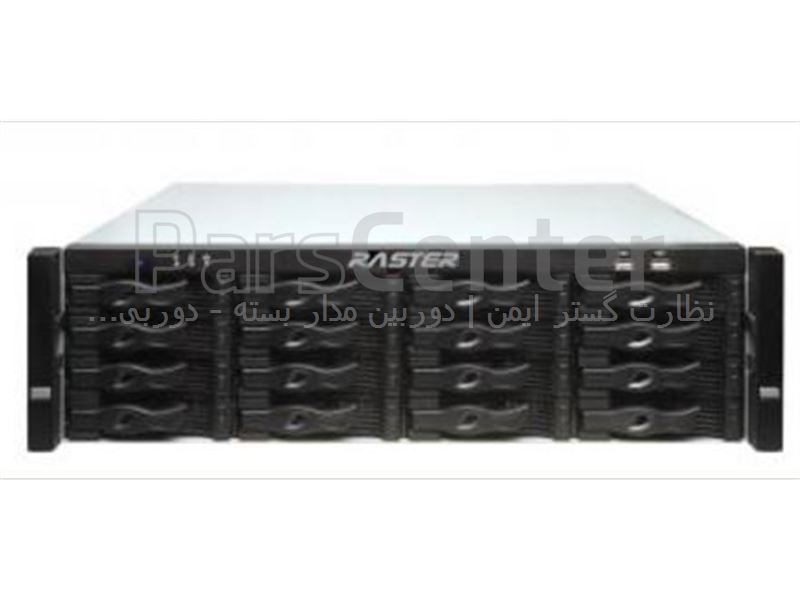

دستگاه NVR مدل RS-4032NVR
مشخصات و ویژگی های دستگاه NVR مدل RS-2108PNVR به همراه قیمت و جزئیات این محصول در نظارت گستر ایمن 32 CHANNEL 3U NETWORK VIDEO RECORDER
مشخصات
- تعداد کانال تصویر :
- 32
- خروجی تصویر :
- CVBA، HDMI، VGA
- مدل :
- RS-4032NVR
- IP video Input :
- ۳۲ channel
- Video/ compression :
- H.264 / MJPEG
- Max user access :
- ۲۰ users
توضیحات محصول
32 CHANNEL 3U NETWORK VIDEO RECORDER
Support up to 32 channel IP camera
Support UP 5 MP Resolution recording
Max 160 Mbps Bit rate input
Playback 16 CH sync real time
HDMI, VGA, CVBS output (1920*1080p)
Support 16 SATA, 1 eSATA, 4 USB 2/0
Support 16/6 Alarm I/O, 1/1 Two-way Talk
RS-232, RS-485, keyboard, 2RJ45 (1000) Mbps
Support Onvif Version 2.0 conformance
| Model | RS-4032NVR |
| System | |
| Operating system | Embedded LINUX |
| Video | |
| IP video Input | ۳۲ channel |
| Audio | |
| Input | – |
| Output | – |
| Two-way talk | ۱ channel Input ,1 channel Output, BNC |
| Display | |
| Interface | ۱HDMI, 1 VGA, 1 TV |
| Resolution | ۱۹۲۰×۱۰۸۰, ۱۲۸۰×۱۰۲۴, ۱۲۸۰×۷۲۰, ۱۰۲۴×۷۶۸ |
| Display split | ۱/۴/۸/۹/۱۶/۲۵/۳۶ |
| Privacy masking | – |
| Recording | |
| Video/ compression | H.264 / MJPEG |
| Resolution | ۵Mp(2560×۱۹۲۰) / ۳Mp(2048×۱۵۳۶) / ۱۰۸۰P(1920×۱۰۸۰) / ۷۲۰P(1280×۷۲۰) / D1 (704×۵۷۶/۷۰۴×۴۸۰) |
| Record rate | Max 128Mbps ( eg. 16ch 5MP@8Mbps, 32ch 1080P@4Mbps & etc.) |
| Record interval | ۱~۱۲۰ min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Alarm& video detection | |
| Alarm input | ۱۶ |
| Relay output | ۶ |
| Trigger events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
| Video detection | Motion Detection, MD Zones: 396(22×۱۸), Video Loss & Camera Blank |
| Playback & backup | |
| Sync playback | ۱/۴/۹/۱۶ |
| Search mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Backup mode | USB Device / eSATA Device / Network |
| Playback function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Network | |
| Ethernet | ۲RJ-45 port (10/100/1000M) |
| Smart phone | iPhone, iPad, Android, Windows Phone |
| Network function | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
| Max user access | ۲۰ users |
| Storage | |
| Internal HDD | ۱۶ SATA ports (16HDDs), up to 64TB, ۱ eSATA port (Max 4 SATA HDDs), up to 16TB |
| Auxiliary interface | |
| USB interface | ۴ ports(2 Rear), USB2.0 |
| RS-232 | ۱ port, For PC communication & Keyboard |
| RS-485 | ۱ port, For PTZ control |
| General | |
| Power supply | AC100~240V,50/60Hz |
| Power consumption | ۴۰W(without HDD) |
| Working environment | -۱۰ ~+۵۵°C / 10~90%RH / 86~106kpa |
| Dimension | ۳U, 448mm×۴۹۰mm×۱۳۳.۲mm |
| Weight | ۱۰.۵kg?11.5kg (without HDD) |
