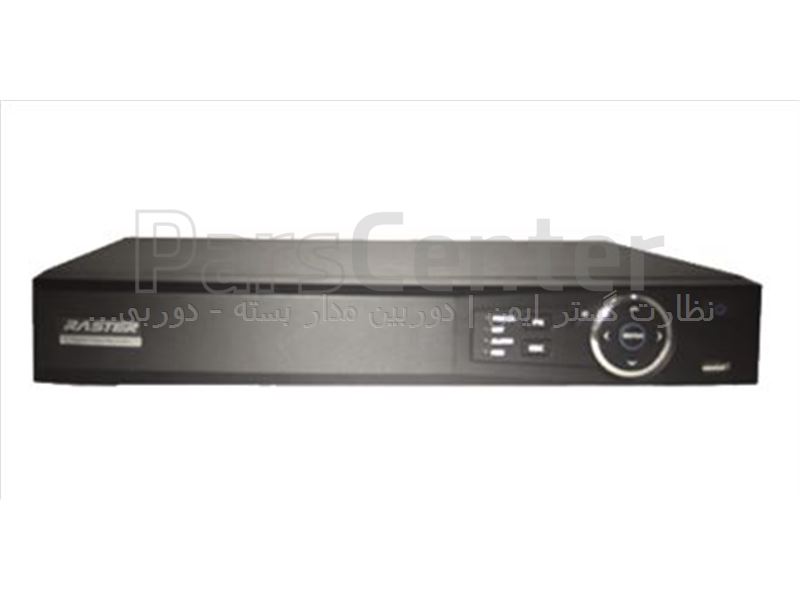

دستگاه NVR مدل RS-316NVR
مشخصات و ویژگی های دستگاه NVR مدل RS-316NVR به همراه قیمت و جزئیات این محصول در نظارت گستر ایمن دستگاه NVR مدل RS-316NVR
مشخصات
- تعداد هارد دیسک :
- 1
- تعداد کانال تصویر :
- 16
- خروجی تصویر :
- HDMI، VGA
- مدل :
- RS-316NVR
- IP Camera Input :
- ۱۶ channel
- Interface :
- ۱ HDMI,1 VGA
- Operating System :
- Embedded LINUX
- Bit Rate :
- ۴۸~ ۸۱۹۲kbps
- Sync Playback :
- ۱/۴/۹/۱۶
- Max. User Access :
- ۱۲۸users
- USB :
- ۲ ports, USB2.0
- Weight :
- ۱.۲۵KG
توضیحات محصول
MINI 1U
Up to 16 channel with 1080Prealtime live view
H.264/MJPEG dual codec decoding
Max 80Mbps incoming bandwidth
Up to 5Mp resolution preview & playback
HDMI/VGA simultaneous video output
All channel synchronous realtime playback
Support Multi-brand network cameras
ONVIF Version 2.3 conformance
Support 1 SATA HDD up to 4TB, 2 USB2.0
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
| Model | RS-316NVR |
| System | |
| Main Processor | Dual-core embedded processor |
| Operating System | Embedded LINUX |
| Video | |
| IP Camera Input | ۱۶ channel |
| Two-way Talk | ۱channel Input, 1channel Output, RCA |
| Display | |
| Interface | ۱ HDMI,1 VGA |
| Resolution | ۱۹۲۰×۱۰۸۰, ۱۲۸۰×۱۰۲۴, ۱۲۸۰×۷۲۰, ۱۰۲۴×۷۶۸ |
| Display Split | ۱/۴/۸/۹/۱۶ |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording | |
| Compression | H.264/MJPEG |
| Resolution | ۵Mp(2560×۱۹۲۰)/۳Mp(2048×۱۵۳۶)/۱۰۸۰P(1920×۱۰۸۰)/۷۲۰P(1280×۷۲۰)/D1 (704×۵۷۶/۷۰۴×۴۸۰) |
| Record Rate | ۸۰Mbps |
| Bit Rate | ۴۸~ ۸۱۹۲kbps |
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval | ۱~۱۲۰ min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Video Detection & Alarm | |
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
| Video Detection | Motion Detection, MD Zones: 396(22×۱۸), Video Loss & Camera Blank |
| Playback & Backup | |
| Sync Playback | ۱/۴/۹/۱۶ |
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode | USB Device/Network/Internal SATA burner |
| Network | |
| Ethernet | ۱ RJ-45 port (10/100Mbps) |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
| Max. User Access | ۱۲۸users |
| Smart Phone | iPhone, iPad, Android, Windows Phone |
| Storage | |
| Internal HDD | ۱ SATA ports, up to 4TB |
| Auxiliary Interface | |
| USB | ۲ ports, USB2.0 |
| General | |
| Power Supply | DC12V/2A |
| Power Consumption | ۱۰W(without HDD) |
| Working Environment | -۱۰°C~+55°C / 10%~90%RH / 86~106kpa |
| Dimension (W×D×H) | Mini 1U, 325mm×۲۴۰mm×۴۵mm |
| Weight | ۱.۲۵KG(without HDD) |
