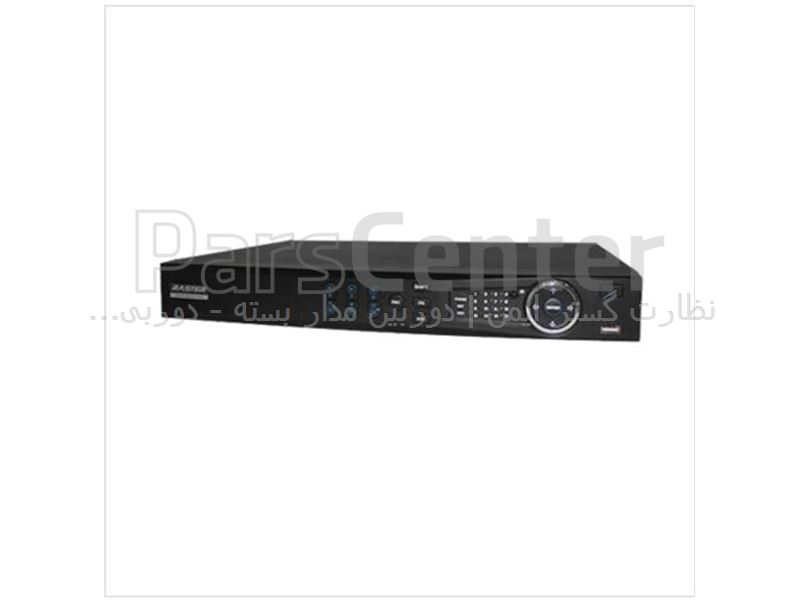

دستگاه DVR مدل RS-404HV2
مشخصات و ویژگی های دستگاه DVR مدل RS-404HV2 به همراه قیمت و جزئیات این محصول در نظارت گستر ایمن 4 CHANNEL 2CIF MINI 1U DIGITAL VIDEO RECORDER
مشخصات
- تعداد هارد دیسک :
- 1
- تعداد کانال تصویر :
- 4
- خروجی تصویر :
- HDMI، VGA
- مدل :
- RS-404HV2
- Operating system :
- Embedded LINUX
- audio Input :
- ۱ channel, RCA
- compression :
- H.264/G.711
- Sync playback :
- ¼
- Ethernet :
- RJ-45 port (10/100M)
- RS-485 :
- PTZ control
- Power supply :
- DC12V/2A
- Weight :
- ۱.۵KG
توضیحات محصول
4 CHANNEL 2CIF MINI 1U DIGITAL VIDEO RECORDER
Support up to 4 channel video input
H.264 dual-stream video compression
4 CH sync real time playback
HDMI, VGA, TV output (1920*1080p)
Support 1 SATA, 2 USB 2/0
Support 1/1 Audio I/O , two way talk
RS-485, RJ45(100M)
Network monitoring by web viewer, RIDMS, RIPMS
| Model | RS-404HV2 |
| System | |
| Operating system | Embedded LINUX |
| Video | |
| Input | ۴ channel, BNC (1 Vp-p,75Ω) |
| Audio | |
| Input | ۱ channel, RCA |
| Output | ۱ channel, RCA |
| Two-way talk | Reuse audio input/output channel 1 |
| Display | |
| Interface | ۱ HDMI, 1 VGA, 1 TV |
| Resolution | ۱۹۲۰×۱۰۸۰, ۱۲۸۰×۱۰۲۴, ۱۲۸۰×۷۲۰, ۱۰۲۴×۷۶۸, ۸۰۰×۶۰۰ |
| Display split | ¼ |
| Privacy masking | ۴ rectangular zones (each camera) |
| Recording | |
| Video/ audio compression | H.264/G.711 |
| Resolution | ۹۶۰H(960×576/960×480)/D1(704×576/704×480)/2CIF(704×۲۸۸/۷۰۴×۲۴۰)/CIF(352×۲۸۸/۳۵۲×۲۴۰)/ QCIF(176×۱۴۴/۱۷۶×۱۲۰) |
| Record rate | ۱ch@960H+1ch@D1+2ch@CIF(1~25/30fps) |
| Record mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record interval | ۱~۶۰ min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Alarm | |
| Alarm input | – |
| Relay output | – |
| Playback & backup | |
| Sync playback | ¼ |
| Search mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Backup mode | USB Device/Network/Internal SATA burner |
| Network | |
| Ethernet | RJ-45 port (10/100M) |
| Smart phone | iPhone, iPad, Android, Windows Phone |
| Storage | |
| Internal HDD | ۱ SATA port, up to 4TB |
| Auxiliary interface | |
| USB interface | ۲ ports (1 Rear), USB2.0 |
| RS-232 | – |
| RS-485 | PTZ control |
| General | |
| Power supply | DC12V/2A |
| Power consumption | ۱۰W(without HDD) |
| Working environment | -۱۰°C ~+55°C/10%~90%RH/86~106kpa |
| Dimension | Mini 1U, 325mm×۲۵۵mm×۵۵mm |
| Weight | ۱.۵KG(without HDD) |
