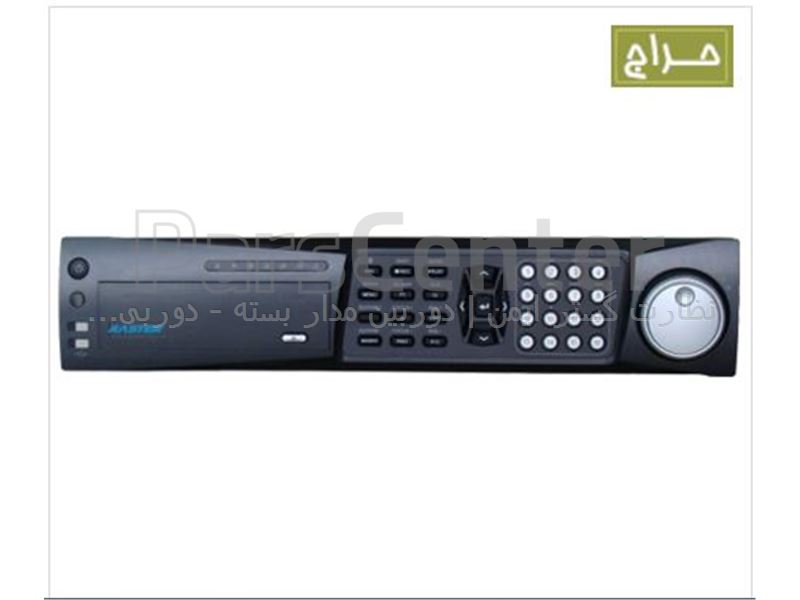

دستگاه DVR مدل RS-8332HTB2
مشخصات و ویژگی های دستگاه DVR مدل RS-8332HTB2 به همراه قیمت و جزئیات این محصول در نظارت گستر ایمن دستگاه DVR مدل RS-8332HTB2
مشخصات
- تعداد هارد دیسک :
- 4
- تعداد کانال تصویر :
- 32
- حداکثر ظرفیت هارد دیسک (هر عدد) :
- 4 ترابایت
- خروجی تصویر :
- HDMI، VGA
- مدل :
- RS-8332HTB2
- Video compression :
- H.264
- Video input :
- ۳۲-ch
- Audio compression :
- G.711u
- USB interface :
- ۳ × USB 2.0
- Alarm in :
- ۱۶
- Alarm out :
- ۸
- Consumption :
- ≤ ۴۰ W
- Working humidity :
- ۱۰% ~ ۹۰%
- Weight :
- ≤ ۵ kg
توضیحات محصول
l Main stream supports up to WD1 resolution and sub stream supports CIF/QCIF resolution.
l Simultaneous HDMI/VGA and CVBS outputs.
l HDMI/VGA output at up to 1920×1080P resolution.
l Channel-zero encoding.
l Support dual stream.
l Video quality diagnostics.
l HDD quota management; different capacity can be assigned to different channel.
l Holiday recording schedule configuration.
l Smart searching for the event triggered record files.
l Smart playback for record files of the analog cameras.
l Digital zoom of video in live view or playback mode.
l Up to 16-ch synchronous playback.
l 1 self-adaptive 10M/100M /1000M network interface.
l IPv6 is supported.
l Network detection function.
l NTP, SMTP, NFS, UPnP™ and iSCSI protocols supported.
l Support alarm push notification (in live video or playback) on the linked mobile phones when alarm event occurs.
| Model | RS-8332HTB2 | |
| Video/Audio input | Video compression | H.264 |
| Video input | ۳۲-ch | |
| Video input interface | BNC (1.0 Vp-p, 75 Ω), PAL /NTSC self-adaptive | |
| Audio compression | G.711u | |
| Audio input | ۴-ch, RCA (2.0 Vp-p, 1 kΩ) | |
| Two-way audio input | ۱-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
| Video/Audio output | HDMI/VGA output | ۱-ch, resolution: ۱۰۸۰P: 1920×۱۰۸۰/۶۰Hz, SXGA: 1280×۱۰۲۴/۶۰Hz, ۷۲۰P: 1280×۷۲۰/۶۰Hz, XGA: 1024×۷۶۸/۶۰Hz |
| CVBS output | ۱-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × ۵۷۶, NTSC: 704 × ۴۸۰ | |
| Video spot out | ۱-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × ۵۷۶, NTSC: 704 × ۴۸۰ | |
| Encoding resolution | WD1 / 4CIF / 2CIF / CIF / QCIF | |
| Frame rate | ۲۵ fps (P) / 30 fps (N) | |
| Video bit rate | ۳۲ Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps) | |
| Audio output | ۲-ch, RCA (Linear, 600 Ω) | |
| Audio bit rate | ۶۴ Kbps | |
| Dual-stream | Support; Sub-stream: CIF / QCIF @ 25 fps (P) / 30 fps (N) | |
| Stream type | Channel 1-4: Video, Video & Audio; Other channels: Video | |
| Synchronous playback | ۱۶-ch | |
| Hard disk | SATA | ۴ SATA interfaces for 2HDDs + 1 DVD-R/W (default), or 4 HDDs |
| eSATA | ۱ eSATA interface | |
| Capacity | Up to 4TB capacity for each disk | |
| External interface | Network interface | ۱, RJ45 10M / 100M / 1000M Ethernet interface |
| Serial interface | ۱RS-232,RS-485(full-duplex)Keyboard | |
| USB interface | ۳ × USB 2.0 | |
| Alarm in | ۱۶ | |
| Alarm out | ۸ | |
| General | Power supply | ۱۰۰~۲۴۰VAC, 5A, 50~60Hz |
| Consumption (without HDD or DVD-R/W) | ≤ ۴۰ W | |
| Working temperature | -۱۰ ºC ~+55 ºC | |
| Working humidity | ۱۰% ~ ۹۰% | |
| Chassis | ۱۹-inch rack-mounted 1.5U chassis | |
| Dimensions (W × D × H) | ۴۴۵ × ۳۹۰ × ۷۰ mm | |
| Weight (without HDD or DVD-R/W) | ≤ ۵ kg |
