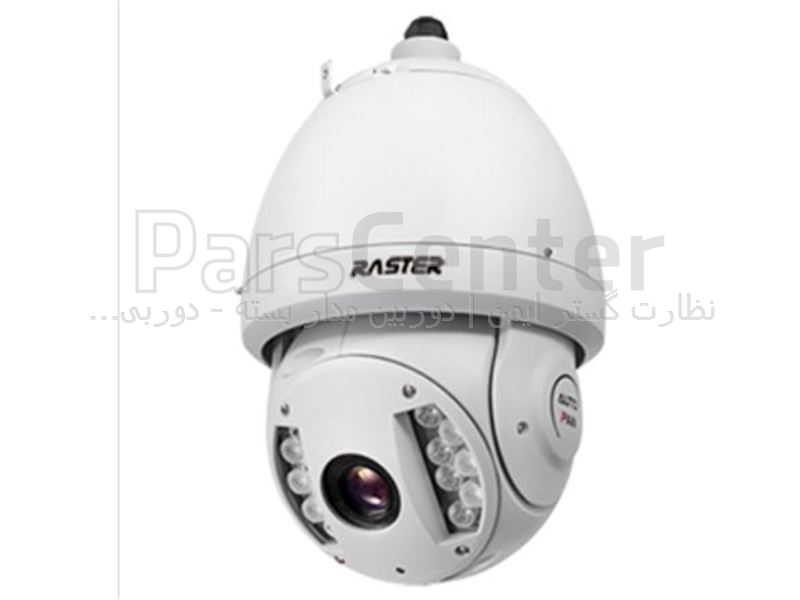

دوربین مدار بسته دام RS-SDI3022H

توضیحات محصول

Camera & Video

• > 1/2.8” 2Megapixel progressive scan Exmor CMOS
• > Powerful 20x optical zoom and 16x digital zoom
• > H.264 & Dual-stream video encoding and JPEG image capture
• > Max 25/30fps @1080P resolution
• > Day/Night(ICR), Auto iris, Auto focus, AWB, BLC
• > Up to 24 privacy masking areas
• > Built-in Web server, NVR, CMS(PSS/DSS) & DMSS

Dome Drive

• > Max 240 °/s pan speed, 360° continuous pan rotation & auto flip with no blind spot monitor
• > Up to 255 preset, 5 auto scan, 8 tour, 5 pattern
• > Auto recognition of general protocols such as DH-SD, Pelco-P/D, and etc
• > Speed setup according to the focal distance, auto rotation speed adjust in accordance with the lens zoom rate
• > Auto restore to previous PTZ and lens status after power failure
• > Time Task: Auto activation of Preset/Scan/Tour/ Pattern by preset-time
• > Idle Motion: Call preset/tour and etc operations after idle for the specified time (including the idle status after the system boots up)
• > OSD and operation prompts of various languages
• > Build-in 7/2 channel alarm input/output
• > Intelligent 3D positioning function
• > IP66 all-environments protection and built-in auto constant temperature control device
• > 4000V thunder, surge and wave-proof protection
• > Easy installation and 100% waterproof with quick-installation port adopted

IR LED

• > The longest distance of the build-in IR LED is over 100m

• لنز 4.7~94 میلیمتر
• کیفیت تصویر 2 مگاپیکسل
• مادون قرمز 100 متر
• برند Raster Red
• نوع دوربین اسپید دام
• Onvif ندارد
• POE ندارد
• ضبط صدا دارد
• Alarm دارد

•

  Model	RS-SDI3022H
  Camera
  Image Sensor	۱/۲.۸” progressive scan Exmor CMOS
  Effective Pixels	Approx. 2 Megapixels
  Lens	۲۰x optical zoom
  f=4.7mm(Wide)~94.0mm(Tele), F1.6~F3.5
  Digital Zoom	۱۶x
  Horizontal Viewing Angle	۵۵.۴°(wide) ~ 2.90°(tele)
  Min. Object Distance	۱۰mm~1000mm (wide~tele)
  Min. Illumination	۱.۸Lux/F1.6(color); 0.02Lux/F1.6(B/W)
  Electronic Shutter	۱/۱ to 1/30,000 s
  White Balance	AWB(3200to7500K);ATB(2000to10000K);Indoor(3200K); Outdoor(5800K);Manual
  Day/Night	Auto(ICR) / Color / B/W
  S/N Ratio	More than 50 dB
  Privacy Masking	ON/OFF (up to 24 privacy masking areas)
  Analog Video Output	BNC(1.0Vp-p / 75Ω), PAL / NTSC
  Video & Audio
  Video Compression	H.264 / MPEG4
  Image Resolution	۱۰۸۰P(1920×۱۰۸۰) / ۷۲۰P(1280×۷۲۰) / D1(704×۵۷۶/۷۰۴×۴۸۰)
  Encoding Speed	Main Stream	PAL: 1080P/720P(1~25fps)
  NTSC: 1080P/720P(1~30fps)
  Extra Stream	PAL: D1(1~25fps)
  NTSC: D1(1~30fps)
  Bit Rate	۳۲K~8Mbps
  Audio Compression	G.711a(32Kbps) / AMR(10.2Kbps)
  Audio Mode	Off/Audio input/Audio output
  Dome Drive
  Pan/Tilt Range	Horizontal: 0°~۳۶۰°endless, Vertical: -2°~۹۰° auto flip 180° to continue monitor
  Manual Control Speed	Horizontal: 0.1° ~۱۶۰° /s, Vertical: 0.1° ~۱۲۰° /s
  Preset Speed	Horizontal: 240° /s, Vertical: 200° /s
  Preset	۲۵۵
  PTZ Mode	۵ Auto Pattern, 8 Auto Tour, 5 auto scan
  ۳D Positioning	Yes
  Speed Setup	Human-oriented focal Length/ speed adaptation
  Info Display	Time, Location, Dome title, Dome coordinates, Temperature, Alarm, and etc.
  Power up Action	Auto restore to previous PTZ and lens status after power failure
  Idle Motion	Activate preset/scan/tour/ patter if there is no command in the specified period.
  Time Task	Auto activation of Preset/Scan/Tour/ Pattern by preset-time
  Alarm	۷/۲ alarm input/output, Triggering Preset/Tour/Pattern/Scan//Alarm output
  Protocol	DH-SD, Pelco-P/D, Auto recognition of general protocols
  IR LED	Auto / Near light / Far light / OFF, 6 Near light + 8 Far light, up to 100m
  Network
  Ethernet	RJ-45 (10/100Base-T)
  Network Functions	TCP/IP, HTTP, DDNS, DHCP, FTP, PPPoE, NTP, SMTP
  Max Remote Users	۲۰Users simultaneously
  Processor	TI DaVinci Series DSP
  Operating System	Embedded LINUX
  Resource	Simultaneous remote monitoring, remote operation & local recording
  Remote Operation	Monitor, PTZ control, Voice Intercom, System setting, Playback, File download, Log information, Maintenance & Upgrade
  Local Recording	SD/SDHC, Max 32GB
  User Interface	WEB, CMS(DSS/ PSS), DMSS, NVR
  General
  Power Supply	AC 24V/3A(±۱۰%)
  Power Consumption	۱۲W/30W(IR LED ON)
  Working Temperature	-۳۰ºC ~ 60ºC
  Working Humidity	<90%
  Protection Level	IP67, 4000V thunder, surge and wave-proof protection
  Dimension	Φ۲۲۹.۶ (mm) x 381 (mm)
  Weight	۷.۰kg
