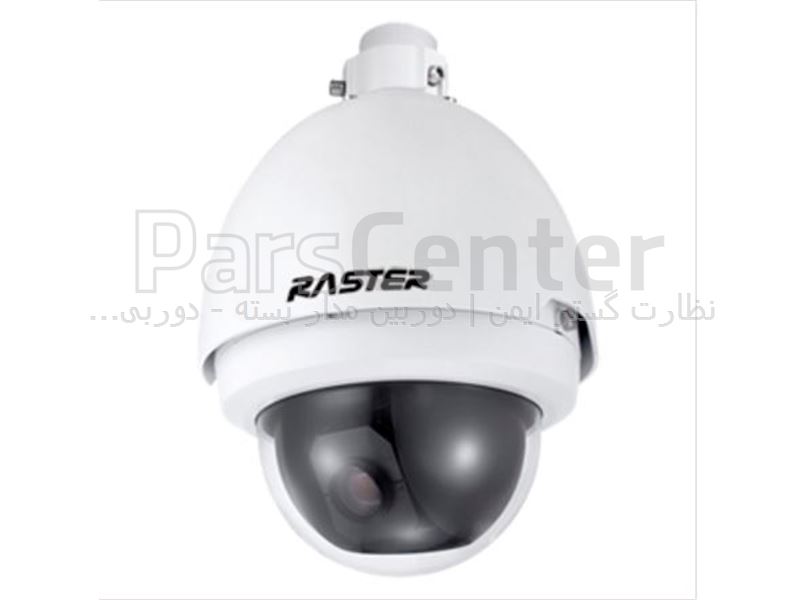

دوربین مدار بسته دام RS-SD2020H
مشخصات و ویژگی های دوربین مدار بسته دام RS-SD2020H به همراه قیمت و جزئیات این محصول در نظارت گستر ایمن دسته: دوربین اسپید دام تحت شبکه.
مشخصات
- دوربین مدار بسته :
- دام
- مدل :
- RS-SD2020H
- لنز :
- 4.7~94
- کیفیت تصویر :
- 2
- Onvif :
- ندارد
- POE :
- ندارد
- ضبط صدا :
- دارد
- Alarm :
- دارد
توضیحات محصول
Camera & Video
- > 1/3” 2Megapixel progressive scan Exmor CMOS
- > Powerful 20x optical zoom and 12x digital zoom
- > H.264 & Dual-stream video encoding and JPEG image capture
- > Max 25/30fps @1080P resolution
- > Day/Night(ICR), Auto iris, Auto focus, AWB, BLC
- > Up to 24 privacy masking areas
- > Built-in Web server, NVR, CMS(PSS/DSS) & DMSS
Dome Drive
- > Max 400 °/s pan speed, 360° continuous pan rotation & auto flip with no blind spot monitor
- > Up to 255 preset, 5 auto scan, 8 tour, 5 pattern
- > Auto recognition of general protocols such as DH-SD, Pelco-P/D, and etc
- > Speed setup according to the focal distance, auto rotation speed adjust in accordance with the lens zoom rate
- > Auto restore to previous PTZ and lens status after power failure
- > Time Task: Auto activation of Preset/Scan/Tour/ Pattern by preset-time
- > Idle Motion: Call preset/tour and etc operations after idle for the specified time (including the idle status after the system boots up)
- > OSD and operation prompts of various languages
- > Build-in 7/2 channel alarm input/output
- > Intelligent 3D positioning function
- > IP67 all-environments protection, 4000V thunder-proof, auto constant temperature & anti-fog
- > Easy installation with user-friendly designs
- لنز 4.7~94 میلیمتر
- کیفیت تصویر 2 مگاپیکسل
- نوع دوربین اسپید دام
- Onvif ندارد
- POE ندارد
- ضبط صدا دارد
- Alarm دارد
| Model | RS-SD2020H | |
| Camera | ||
| Image Sensor | ۱/۳” progressive scan Exmor CMOS | |
| Effective Pixels | Approx. 2 Megapixels | |
| Lens | ۲۰x optical zoom | |
| f=4.7mm(Wide)~94.0mm(Tele), F1.6~F3.5 | ||
| Digital Zoom | ۱۲x | |
| Horizontal Viewing Angle | ۱۰۸۰p mode: 55.4°(Wide)~2.9°(Tele), 720p mode: 37.6°(Wide)~1.95°(Tele) | |
| Min. Object Distance | ۱۰mm(wide) ~ 800mm(Tele) | |
| Min. Illumination | ۰.۵ lx (F1.6, 50 IRE, ICR Off), 0.095 lx (F1.6, 50 IRE, ICR On) | |
| Electronic Shutter | ۱/۱ to 1/10,000 s, Total 22 steps | |
| White Balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp Fix/Auto, One-push, Manual | |
| WDR | On, Off, Auto, Ratio Fix | |
| Day/Night | Auto(ICR) / Color / B/W | |
| S/N Ratio | More than 50 dB | |
| Privacy Masking | ON/OFF (up to 24 privacy masking areas) | |
| Analog Video Output | BNC(1.0Vp-p / 75Ω), PAL / NTSC | |
| Video & Audio | ||
| Video Compression | H.264 / MPEG4 | |
| Image Resolution | ۱۰۸۰P(1920×۱۰۸۰) / ۷۲۰P(1280×۷۲۰) / D1(704×۵۷۶/۷۰۴×۴۸۰) | |
| Encoding Speed | Main Stream | PAL: 1080P/720P(1~25fps) |
| NTSC: 1080P/720P(1~30fps) | ||
| Extra Stream | PAL: D1(1~25fps) | |
| NTSC: D1(1~30fps) | ||
| Bit Rate | ۳۲K~8Mbps | |
| Audio Compression | G.711a(32Kbps) / AMR(10.2Kbps) | |
| Audio Mode | Off/Audio input/Audio output | |
| Dome Drive | ||
| Pan/Tilt Range | Horizontal: 0°~۳۶۰°endless, Vertical: -2°~۹۰° auto flip 180° to continue monitor | |
| Manual Control Speed | Horizontal: 0.1°~۳۰۰°/s, Vertical: 0.1°~۱۵۰°/s | |
| Preset Speed | Horizontal: 400°/s, Vertical: 180°/s | |
| Preset | ۲۵۵ | |
| PTZ Mode | ۵ Auto Pattern, 8 Auto Tour, 5 auto scan | |
| ۳D Positioning | Yes | |
| Speed Setup | Human-oriented focal Length/ speed adaptation | |
| Info Display | Time, Location, Dome title, Dome coordinates, Temperature, Alarm, and etc. | |
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |
| Idle Motion | Activate preset/scan/tour/ patter if there is no command in the specified period. | |
| Time Task | Auto activation of Preset/Scan/Tour/ Pattern by preset-time | |
| Alarm | ۷/۲ alarm input/output, Triggering Preset/Tour/Pattern/Scan//Alarm output | |
| Protocol | DH-SD, Pelco-P/D, Auto recognition of general protocols | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Network Functions | HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server | |
| Max Remote Users | ۲۰ Users simultaneously | |
| Processor | TI DaVinci Series DSP | |
| Operating System | Embedded LINUX | |
| Resource | Simultaneous remote monitoring, remote operation & local recording | |
| Remote Operation | Monitor, PTZ control, Voice Intercom, System setting, Playback, File download, Log information, Maintenance & Upgrade | |
| Local Recording | SD/SDHC, Max 32GB | |
| User Interface | WEB, CMS(DSS/ PSS), DMSS, NVR | |
| General | ||
| Power Supply | AC 24V/3A(±۱۰%) | |
| Power Consumption | ۱۲W(Indoor), 40W(Outdoor, heater on) | |
| Working Temperature | -۴۰ºC ~ 60ºC | |
| Working Humidity | <90% | |
| Protection Level | IP67, 4000V thunder, surge and wave protection | |
| Dimension | Φ۲۲۲(mm) x 322(mm) | |
| Weight | ۵.۰kg |
