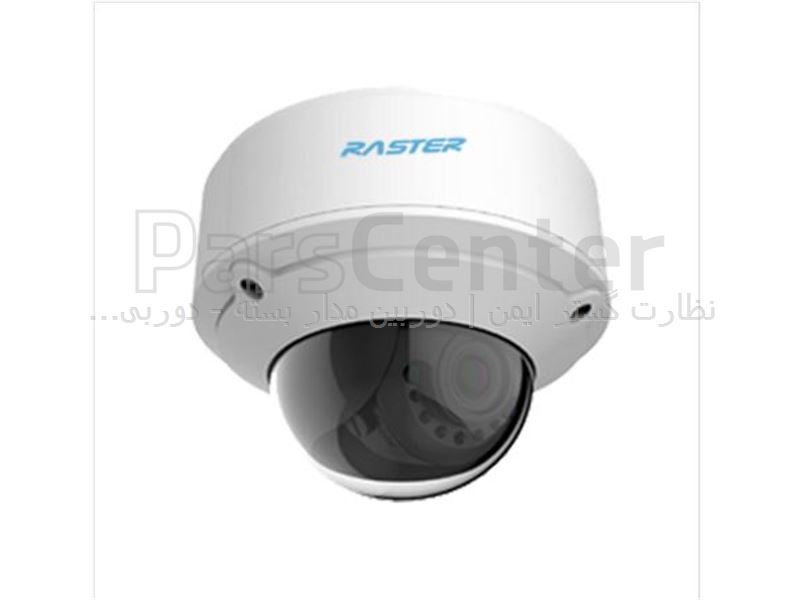

دوربین مدار بسته دام RS-IP5300VDW
مشخصات و ویژگی های دوربین مدار بسته دام RS-IP5300VDH به همراه قیمت و جزئیات این محصول در نظارت گستر ایمن دسته: دوربین دام تحت شبکه.
مشخصات
- لنز :
- 2.8~12 میلیمتر
- کیفیت تصویر :
- 3 مگاپیکسل
- مادون قرمز :
- 30 متر
- برند :
- Raster Blue
- نوع دوربین :
- دام
- Onvif :
- دارد
- POE :
- دارد
- ضبط صدا :
- دارد
- Alarm :
- دارد
توضیحات محصول
- Up to 3 megapixel (2048 x 1536) @ 20 fps resolution
- Standard video compression with high compression ratio.
- High-performance and long service life Infrared LED, Approx. 10 to 30 meters
- Support motorized VF lens(-Z model)
- Support smart heater(-H model)
- Support 3D DNR
- Support WDR, up to 120dB
- Support Environmental Noise Filtering
- IR cut filter with auto switch
- Two-way audio
- Support Smart Defog
- Support EIS
- PoE (Power over Ethernet)
- لنز 2.8~12 میلیمتر
- کیفیت تصویر 3 مگاپیکسل
- مادون قرمز 30 متر
- برند Raster Blue
- نوع دوربین دام
- Onvif دارد
- POE دارد
- ضبط صدا دارد
- Alarm دارد
| Model Parameter | RS-IP5300VDW |
| ۳ Megapixel CMOS Vandal-proof and Weather-proof WDR Network Dome Camera | |
| Camera | |
| Image Sensor | ۱/۳” Progressive Scan CMOS |
| Min. Illumination | ۰.۱ Lux @ (F1.2, AGC ON), 0 lux with IR ۰.۱۴ Lux @ (F1.4, AGC ON), 0 lux with IR |
| Shutter Speed | ۱/۳ s to 1/100,000 s |
| Slow Shutter | Support |
| Lens | ۲.۸-۱۲mm @ F1.4, angle of view: 91.2-28.3° -Z: 2.8-12mm @ F1.4, angle of view: 91.2-28.3° |
| Lens Mount | Φ۱۴ |
Angle Adjustment | Pan:0° – ۳۶۰°, Tilt: 0° – ۷۵°, Rotation: 0° – ۳۶۰° |
| Auto-iris | DC drive |
| Day & Night | IR cut filter with auto switch |
| Digital Noise Reduction | ۳D DNR |
| Wide Dynamic Range | ۱۲۰dB |
| Compression Standard | |
| Video Compression | H.264/MPEG4/MJPEG |
| H.264 Type | Baseline Profile / Main Profile / High Profile |
| Video Bit Rate | ۳۲ Kbps – ۱۶ Mbps |
| Audio Compression | G.711/G.726 |
| Audio Bit Rate | ۶۴Kbps(G.711) / 16Kbps(G.726) |
| Image | |
| Max. Resolution | ۲۰۴۸×۱۵۳۶ |
| Frame Rate | ۵۰Hz: 20fps (2048 × ۱۵۳۶), ۲۵fps (1920 × ۱۰۸۰), ۲۵fps (1280 × ۷۲۰) ۶۰Hz: 20fps (2048 × ۱۵۳۶), ۳۰fps (1920 × ۱۰۸۰), ۳۰fps (1280 × ۷۲۰) |
| Third Stream | Independent with Main Stream and Sub Stream, up to ۵۰Hz: 20fps (2048 × ۱۵۳۶) ۶۰Hz: 20fps (2048 × ۱۵۳۶) |
| BLC | Support |
| HLC | Support |
| Smart Defog | Support |
| EIS | Support |
| Image Setting | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| Day/Night Switch | Auto/Schedule/Triggered by Alarm In |
| ROI | Support 4 different areas configuration in all the three streams with adjustable 6 levels. Automatically dynamic tracking with face detection can be configured. |
| Picture Overlay | LOGO picture can be overlaid on video with 128×128 24bit bmp format |
| Network | |
| Network Storage | NAS |
| Alarm Trigger | Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour(SIP,SRTP optional) |
Security | User Authentication, Watermark, IP address filtering, Anonymous access |
Standard | ONVIF, PSIA, CGI |
| Interface | |
| Communication Interface | ۱ RJ45 10M/100M Ethernet interface |
| Video Output | ۱Vp-p composite output (75 Ω/RCA, for lens adjustment when installation) |
| On-board storage | Built-in Micro SD/SDXC slot, up to 64 GB |
| Reset Button | Yes |
| General | |
| Operating Conditions | -۳۰ °C – ۶۰ °C (-22 °F – ۱۴۰ °F) Humidity 95% or less (non-condensing) -H: -40 °C – ۶۰ °C (-40 °F – ۱۴۰ °F) with smart heater on |
| Smart Heater | -H: Support |
| Power Supply | ۲۴ VAC ± ۱۰% / PoE (802.3af) |
| Power Consumption | Max. 12 W -Z/-H: Max. 13W |
| IR Range | Approx. 10 to 30 meters |
| Impact Protection | IEC60068-2-75Eh, 50J; EN50102, up to IK10 |
| Ingress Protection level | IP66 |
| Dimensions | Φ ۱۵۹.۸ × ۱۴۶ mm (Φ ۶.۲۹” × ۵.۷۵”) |
| Weight | ۲۱۰۰ g (4.62 lbs) |
