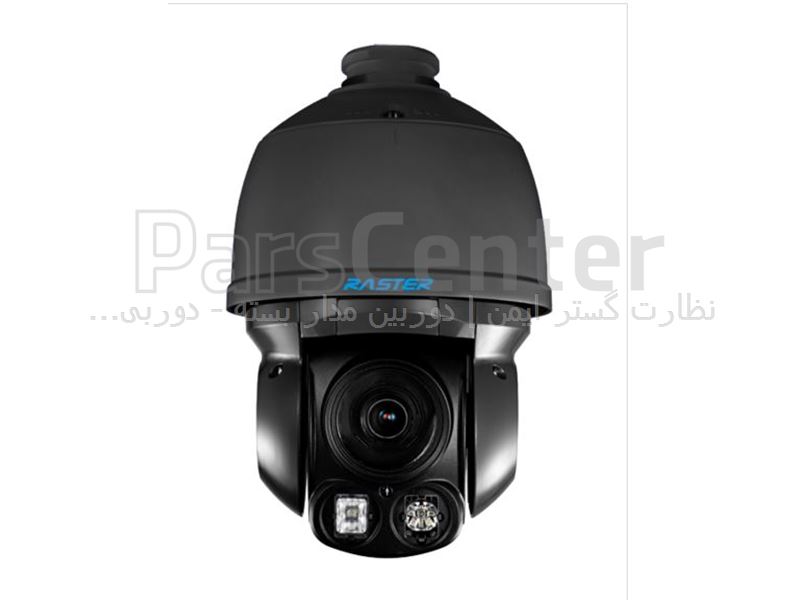

دوربین مدار بسته دام RS-SFI17012RI
مشخصات و ویژگی های دوربین مدار بسته دام RS-SFI17012RI به همراه قیمت و جزئیات این محصول در نظارت گستر ایمن دسته: دوربین اسپید دام آنالوگ.
مشخصات
- دید در شب :
- بله
- ضد آب :
- IP66
- مدل :
- RS-SFI17012RI
- نوع دوربین :
- دام
- نوع سنسور :
- CCD
- کیفیت :
- 650
- برند :
- Raster Blue
- نوع دوربین :
- اسپید دام
توضیحات محصول
l Manchester code communication diagnosis capability
l Scheduled PTZ movement
l Password protection
l Camera title programmable
l Zone Scanning
l IP66(outdoor)
l 3D DNR
- کیفیت تصویر 650TVL
- مادون قرمز 50 متر
- منو OSD دارد
- سنسور CCD SONY
- برند Raster Blue
- نوع دوربین اسپید دام
| Model Parameter | RS–SFI17012RI
| |
| F series Mini PTZ Dome Analog Camera | ||
| Camera | Image Sensor | ۱/۳″ SONY Interline Transfer Exview HAD-ⅡCCD |
| Effective Pixel | PAL:976(H)×۵۸۲(V) NTSC:976(H)×۴۹۴(V) | |
| Horizontal Resolution | Color: 650 TVL B/W: 700 TVL | |
| Signal System | PAL /NTSC | |
| Min. Illumination | Color: 0.1Lux/ (F1.6 AGC ON) B/W: 0.01Lux/(F1.6 AGC ON)0 lux with IR | |
| White Balance | Auto/ATW/Indoor/Outdoor/One push | |
| AGC | Auto / Manual | |
| S / N Ratio | ≥ ۵۰dB | |
| ۳D DNR | High/Medium/Low/off | |
| BLC | On / Off | |
| Shutter Time | PAL: 1/1-1/10,000s NTSC: 1/1-1/10,000s | |
| Day & Night | IR Cut Filter | |
| Digital Zoom | ۱۶x | |
| Privacy Mask | ۸ privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen | |
| Focus Model | Auto / Semiautomatic / Manual | |
| Lens | Focal Length | ۳.۸-۴۵.۶mm,12x |
| Zoom Speed | Approx.2s(Optical Wide-Tele) | |
| Angle of View | ۵۰.۶۹-۴.۵degree(Wide-Tele) | |
| Min. Working Distance | ۱۰-۱۵۰۰mm(Wide-Tele) | |
| Aperture Range | F1.6-F2.7 | |
| Pan and Tilt | Pan Range | ۳۶۰° endless |
| Pan Speed | Pan Manual Speed: 0.1° -۱۶۰°/s, Pan Preset Speed: 160°/s | |
| Tilt Range | -۱۰°-۹۰°(Auto Mirror) | |
| Tilt Speed | Tilt Manual Speed: 0.1°-۱۲۰°/s, Tilt Preset Speed: 120°/s | |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset | ۲۵۶ | |
| Patrol | ۸ patrols, up to 32 presets per patrol | |
| Pattern | ۴ patterns, with the total recording time not less than 10 minutes | |
| Power-off Memory | Support | |
| Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan | |
| PTZ Position Display | On / Off | |
| Freeze Frame | Support | |
| Password Protection | Support | |
| Zone Scanning/Display | Scanning within programmed zone, display zone title | |
| Camera Title | Programmable title display | |
| Compass | Support , the north can be set | |
| Scheduled Task | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan | |
| RS-485 communication diagnosis | Including failure information, e.g., wrong address, baud rate errors, et., displayed on the video screen in text | |
| Manchester code communication diagnosis | Including failure information, e.g., wrong address, baud rate errors s displayed on the video screen in special characters | |
| IR | IR Range | ۵۰m |
| IR irradiation angle | Automatically adjusted, depending on the zoom ratio | |
| Input/ Output | Monitor Output | ۱.۰V[p-p] / 75Ω, NTSC (or PAL) composite, BNC |
| General | Menu Language | English, Chinese |
| RS-485 Protocols | , Pelco-P, Pelco-D, self-adaptive | |
| Power | ۲۴ VAC Outdoor: Max.20 W(IR: 4W, heater: 6W) Indoor: Max.14W(IR: 4W) | |
| Working Temperature / Humidity | -۳۰ ℃-۶۵℃(-۲۲℉-۱۴۹℉)(outdoor dome)/ -10 ℃-۵۰℃(۱۴℉-۱۲۲℉) ۹۰% or less | |
| Protection Level | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection | |
| Mounting | Various mounting modes optional | |
| Dimension | Φ۱۵۵×۲۳۵mm (Φ۶.۱۰”×۹.۲۵”)(Outdoor) | |
| Weight (approx.) | ۲Kg (4.41Ibs) (Outdoor) | |
