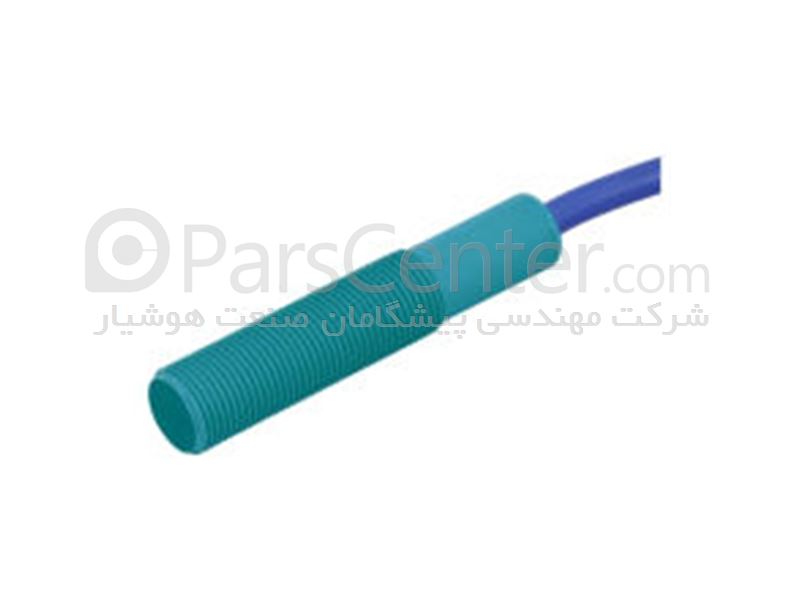

Capacitive sensor"CJ4-12GK-N-10M" pepperl+fuchs
Comfort series
مشخصات
- NAMUR, NO :
- Switching element function
- 4 mm :
- Rated operating distance
- 0mm-2.88mm :
- Assured operating distance
- 0تا 1 هرتز :
- Switching frequency
توضیحات محصول
Datasheet excerpt: Technical data of CJ4-12GK-N-10M
General specifications | ||
Switching element function | NAMUR, NO | |
Rated operating distance | 4 mm | |
Installation | non-flush | |
Output polarity | NAMUR | |
Assured operating distance | 0 ... 2.88 mm | |
Nominal ratings | ||
Installation conditions | ||
A | 20 mm | |
| B | 80 mm | |
| C | 12 mm | |
| F | 70 mm | |
Nominal voltage | 8 V | |
Operating voltage | 7 ... 12 V | |
Switching frequency | 0 ... 1 Hz | |
Current consumption | ||
Measuring plate not detected | max. 1 mA | |
Measuring plate detected | ≥ 2.4 mA | |
Functional safety related parameters | ||
MTTFd | 3299 a | |
Mission Time (TM) | 20 a | |
Diagnostic Coverage (DC) | 0 % | |
Compliance with standards and directives | ||
Standard conformity | ||
NAMUR | EN 60947-5-6:2000 | |
Approvals and certificates | ||
FM approval | ||
Control drawing | 116-0165F | |
UL approval | cULus Listed, General Purpose | |
CSA approval | cCSAus Listed, General Purpose | |
CCC approval | CCC approval / marking not required for products rated ≤36 V | |
Ambient conditions | ||
Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
Mechanical specifications | ||
Connection type | cable PVC , 10 m | |
Core cross-section | 0.34 mm2 | |
Housing material | PBT | |
Sensing face | PBT | |
Housing diameter | 12 mm | |
Degree of protection | IP68 | |
General information | ||
Use in the hazardous area | see instruction manuals | |
Category | 1G; 2G; 1D |
