CPU SIEMENS S7 314 "series" PART2

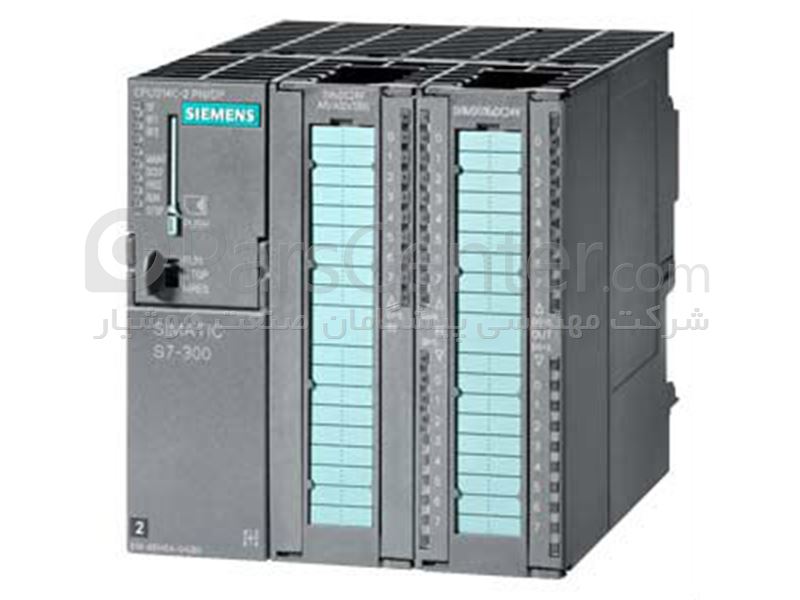

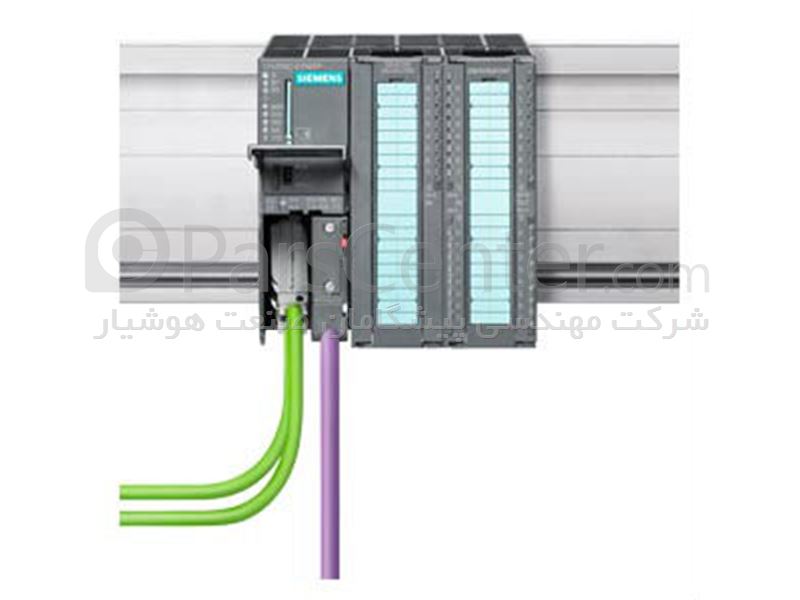

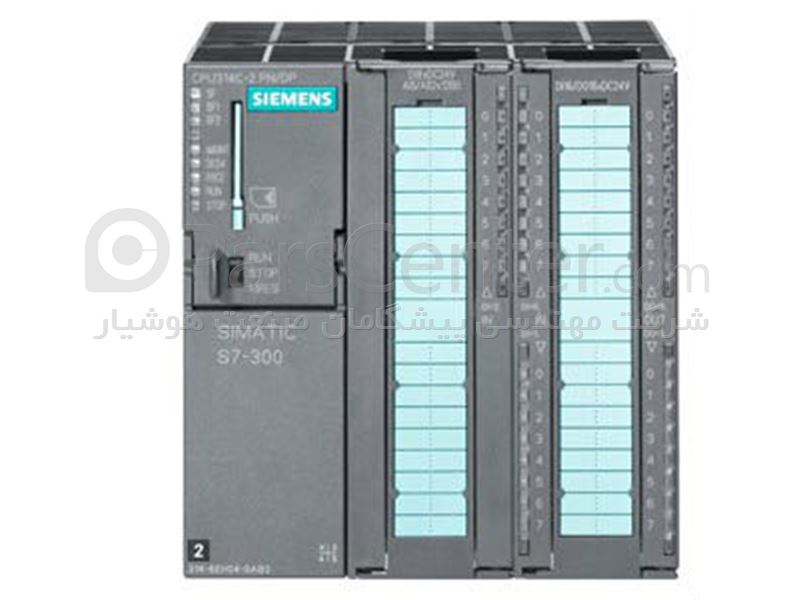

SIMATIC S7-300 CPU 314 CPU for installations with medium requirements on program scope,High processing performance in binary and floating-point arithmetic,MPI-interface onboard,Comprehensive integrated system diagnosis
مشخصات
- 314C-2 DP :
- 6ES7 314-6CG03-0AB0
- 314C-2 PN/DP :
- 6ES7 314-6CH04-0AB0
- 314C-2 PtP :
- 6ES7 314-6EH04-0AB0
- 314C-2 PtP :
- 6ES7 314-6BF00-0AB0
- 314C-2 PtP :
- 6ES7 314-6BF01-0AB0
- 314C-2 PtP :
- 6ES7 314-6BF02-0AB0
- 314C-2 PtP :
- 6ES7 314-6BG03-0AB0
- 314C-2 PtP :
- 6ES7 314-6BH04-0AB0
توضیحات محصول
CPU S7-314 SERIES
Part no | TYPE | specification |
6ES7 314-6CH04-0AB0 | 314C-2 DP | Work memory 192KB; 0.06ms/1000 instructions; DI24/DO16; AI5/AO2 integrated; 4 pulse outputs (2.5kHz); 4 channel counting and measuring with incremental encoders 24V (60kHz); integrated positioning function; MPI+ DP connector (DP master or DP slave); multi-tier configuration up to 31 modules; send and receive capability for direct data exchange; constant bus cycle time; routing; S7 Communication (loadable FBs/FCs); firmware V3.3 |
6ES7 314-6EH04-0AB0 | 314C-2 PN/DP | Work memory 192KB; 0.06ms/1000 instructions; DI24/DO16; AI5/AO2 integrated; 4 pulse outputs (2.5kHz); 4 channel counting and measuring with incremental encoders 24V (60kHz); integrated positioning function; MPI+ DP connector (DP master or DP slave); PROFINET IO-Controller; supports RT/IRT; PROFINET interface and 2 ports; MRP; multi-tier configuration up to 31 modules; send and receive capability for direct data exchange; constant bus cycle time; routing; S7 Communication (loadable FBs/FCs); firmware V3.3 |
6ES7 314-6BF00-0AB0 | 314C-2 PtP | Work memory 48 KB; 0.1ms/1000 instructions; DI24/DO16; AI5/AO2 integrated; 4 pulse outputs (2.5 kHz); 4 channels counting and measuring incremental encoders 24 V (60 kHz); integrated positioning function; MPI+ PtP connector (RS-422/485 (ASCII, 3964(R), RK512)); multi-tier configuration up to 31 modules; firmware V1.0 |
6ES7 314-6BF01-0AB0 | 314C-2 PtP | Work memory 48 KB; 0.1ms/1000 instructions; DI24/DO16; AI5/AO2 integrated; 4 pulse outputs (2.5kHz); 4 channel counting and measuring with incremental encoders 24V (60kHz); integrated positioning function; MPI+ PtP connector (RS422/485 (ASCII, 3964(R), RK512)); multi-tier configuration up to 31 modules; firmware V2.0 |
6ES7 314-6BF02-0AB0 | 314C-2 PtP | Work memory 64KB; 0.1ms/1000 instructions; DI24/DO16; AI5/AO2 integrated; 4 pulse outputs (2.5kHz); 4 channel counting and measuring with incremental encoders 24V (60kHz); integrated positioning function; MPI+ PtP connector (RS422/485 (ASCII, 3964(R), RK512)); multi-tier configuration up to 31 modules; firmware V2.0 |
6ES7 314-6BG03-0AB0 | 314C-2 PtP | Work memory 96KB; 0.1ms/1000 instructions; DI24/DO16; AI5/AO2 integrated; 4 pulse outputs (2.5kHz); 4 channel counting and measuring with incremental encoders 24V (60kHz); integrated positioning function; MPI+ PtP connector (RS422/485 (ASCII, 3964(R), RK512)); multi-tier configuration up to 31 modules; firmware V2.6 |
6ES7 314-6BH04-0AB0 | 314C-2 PtP | Work memory 192KB; 0.06ms/1000 instructions; DI24/DO16; AI5/AO2 integrated; 4 pulse outputs (2.5kHz); 4 channel counting and measuring with incremental encoders 24V (60kHz); integrated positioning function; MPI+ PtP connector (RS422/485 (ASCII, 3964(R), RK512)); multi-tier configuration up to 31 modules; firmware V3.3 |
