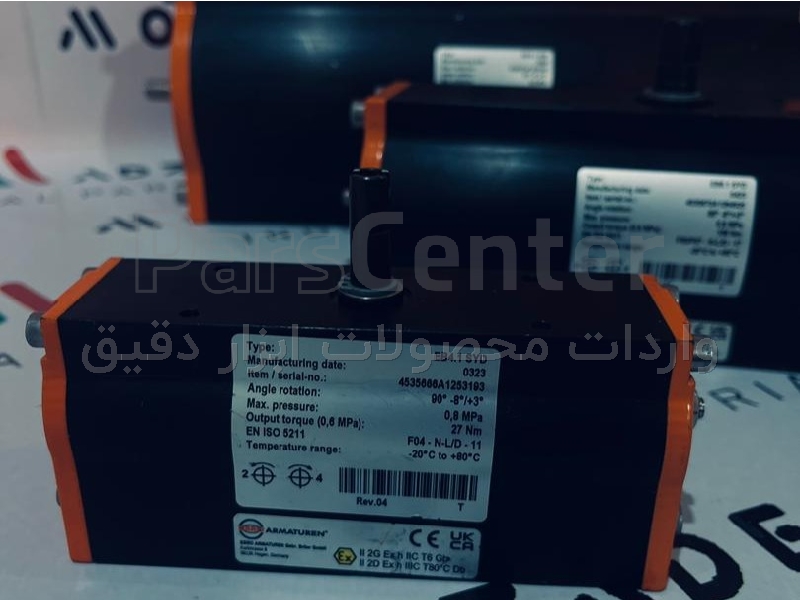

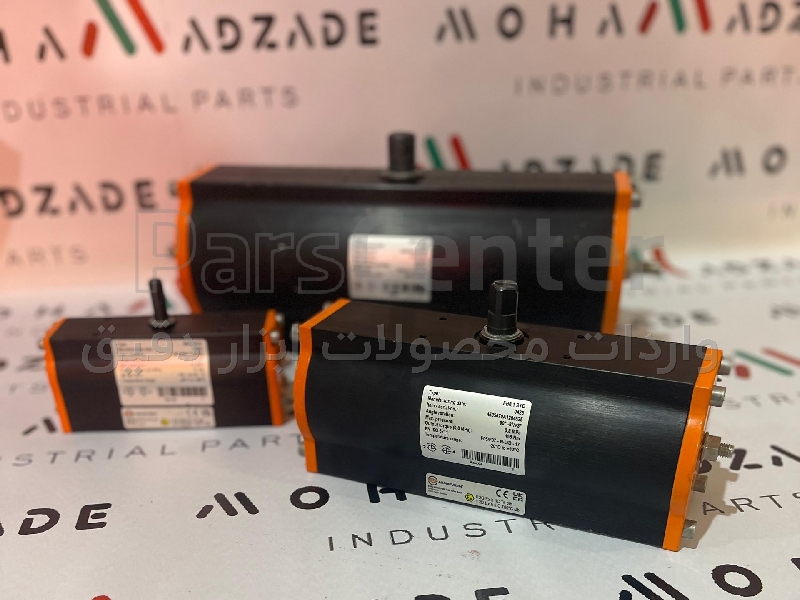

اکچیوتر EBRO Armaturen مدل EB-SYD در 13 سایز مختلف

توضیحات محصول

​The double acting version of this series is available in 13 sizes,constructed to the scotch-yoke principle.TECHNICAL DATAFEATURES- Maintenance-free- Suitable for all ¼ turn valves- Blow-out proofed shaft- Torques in agreement with EN ISO 5211- Optical position indicator with integrated operator for limit switches- All fasteners made of stainless steel- SIL 2 (SIL 3 as redundant system) acc. to IEC 61508KEY BENEFITS- High opening- and closing- torques provided by scotch-yokeconcept- Ideal sliding properties provided by low friction multiple pistonguides- Operational safety and long service life assured by precisemachining of parts- Low air consumption- ATEX: EX II 2 GD c TxThe EBRO Speed Control block allows the adjustment of closing/opening times up to 60 sec. (depending on actuator size).It can be mounted directly onto the actuator.

Torque: 27 - 9768 Nm(supply pressure of 6 bar)Limit of travel: exactly adjustable between -8°/+3°Limit switches andsolenoid valve mounting: VDI / VDE 3845Supply pressure: min. 2,5 bar, max. 8 barSupply quality: Filtered compressed air dry or lubricated.The pressure condensation point inaccordance with(ISO 8573-1:2010, Class 3)has to be ≥ - 20°C or 10°C under ambient temperature.The maximum particle size in accordance with (ISO 8573-1:2010, Class 5)should not exceed 40 µm.For cycles ≥ 4 /min please lubricate.Temperature range: -20°C to +80°C (standard)-40°C to +80°C (low temperature)-15°C to +120°C (high temperature)Valve interface: EN ISO 5211Actuator cylinder: Anodized aluminium,Other coatings upon request.
