پی اچ متر همیلتون HAMILTON مدل 2313-243632

توضیحات محصول

​

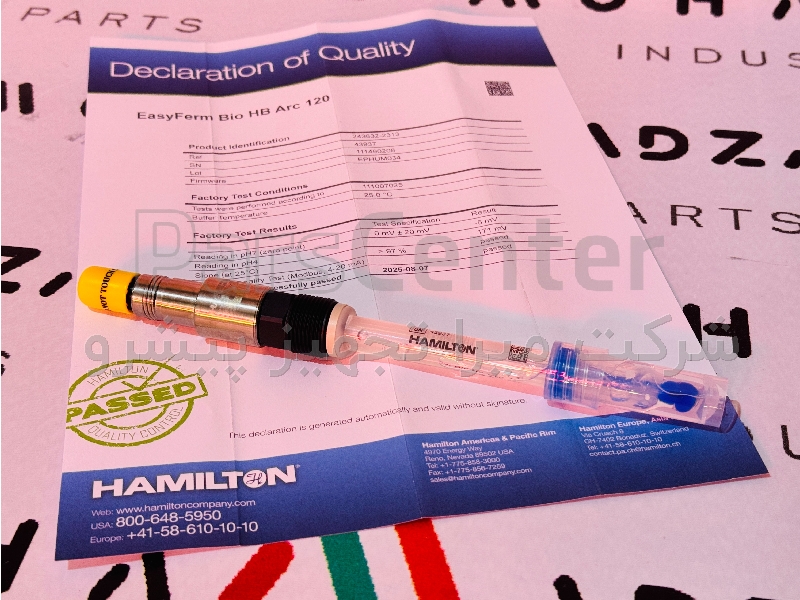

​​The EasyFerm Bio Arc is a pH sensor with Arc technology, designed for sanitary applications in the Food & Beverage industry. It offers precision and durability with pre-pressurized reference technology and Arc intelligence.

The Foodlyte electrolyte of the EasyFerm Bio sensors is certified for bio-compatibility, making it the ideal choice for Food or Biopharma applications.

Different glass membrane formulations are suitable for various applications, allowing users to optimize their processes. Hamilton's clog-free diaphragm increases the stability and accuracy of readings, while extending the service life of the sensor.



Process Connection
PG13,5
Wetted Parts
GΙass
VMQ (Silicone elastomer)
Electrical Connector
VP8
Sensor Output
Arc: Modbus, 4 to 20 mA
Measuring Range
pH 0 to 14
Electrolyte
Pressurized Foodlyte
Sensitivity
57 to 59 mV / pH at 25 °C
Zero Point
0 ± 20 mV
pH Glass Resistance
Moderate
Membrane Shape
Spherical
Diaphragm
HP-Coatramic
Number of Diaphragms
1
Reference System
Hamilton Everef-F, Silver ion barrier included
Temperature Sensor
NTC 22 kOhm
Configurable Values
pH: pH, mV; Temperature: °C, K, °F
O-ring Material
FDA 21 CFR 177.2600; EC 1935/2004; USP <87>; USP <88> Class VI (121 °C)
Analog Interface 1
4 to 20 mA for pH, programmable
Analog Interface 2
4 to 20 mA for Temp., programmable
Analog Interface 1 and 2
Galvanically not isolated; pulse width modulation 3.5 kHz
Digital Interface
RS485 Modbus (max. 32 addresses)
Baud Rate
4800, 9600, 19200, 38400, 57600,115200 Bd
Operating Voltage
7 to 30 VDC max. 150 mW
Serial Number
Yes
Recommended Storage
Hamilton Storage Solution or 3 M KCl
Certificate
Yes, with measured values in Buffer pH 4.01 and pH 7.00
ATEX Approval
No
IECEx Approval
No
Diameter
12 mm
Autoclavable
Yes, max. Temperature 130 °C
Steam Sterilizable
Yes, max. Temperature 140 °C
CIP
Yes
Operating Temperature Range
Analog interface: 0 to 110 °C; Digital interface: 0 to 140 °C
Sample min Conductivity
100 µS/cm
Pressure Range bar g
0 to 6 bar
pH Glass
Hamilton type HB glass
a-length
120 mm
